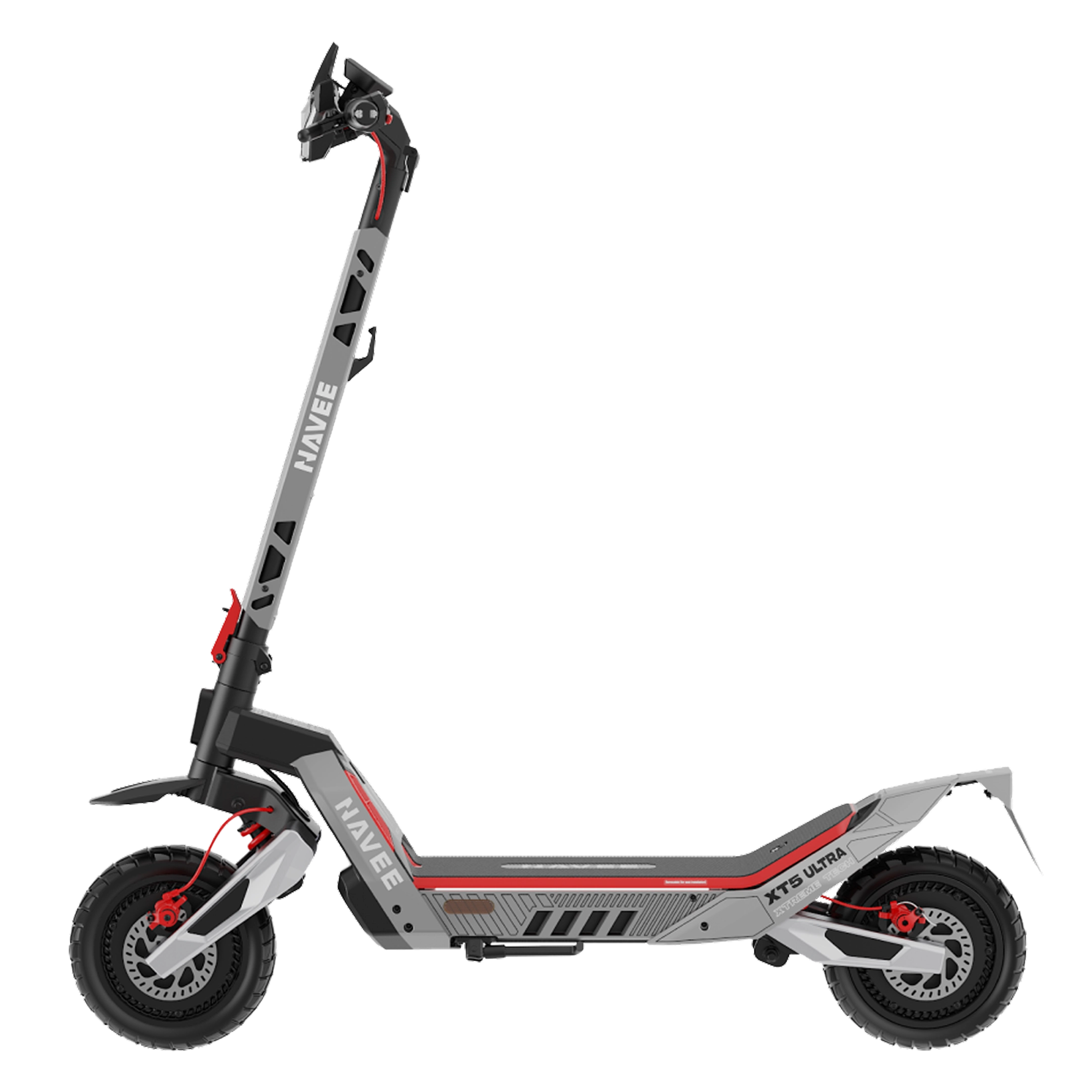

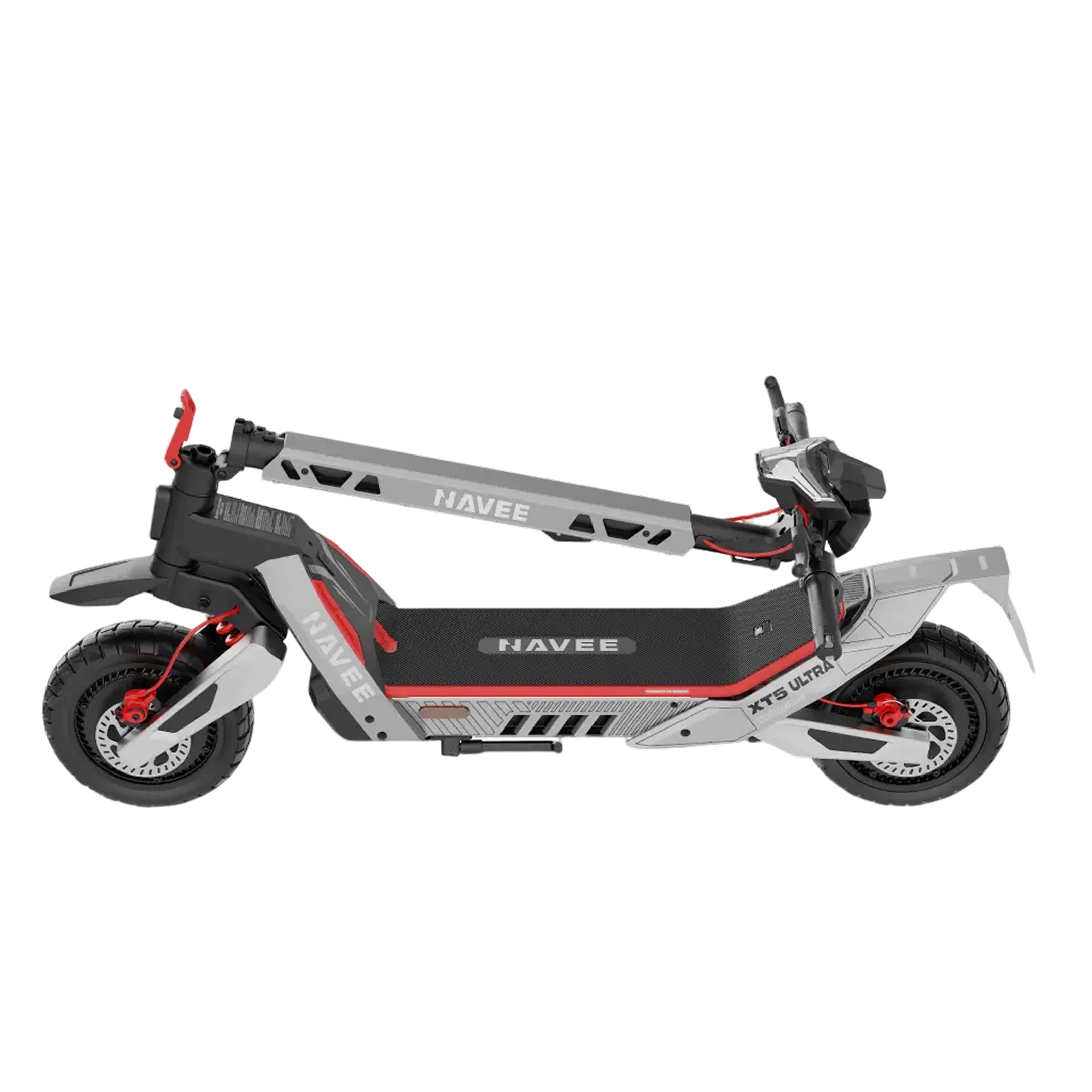

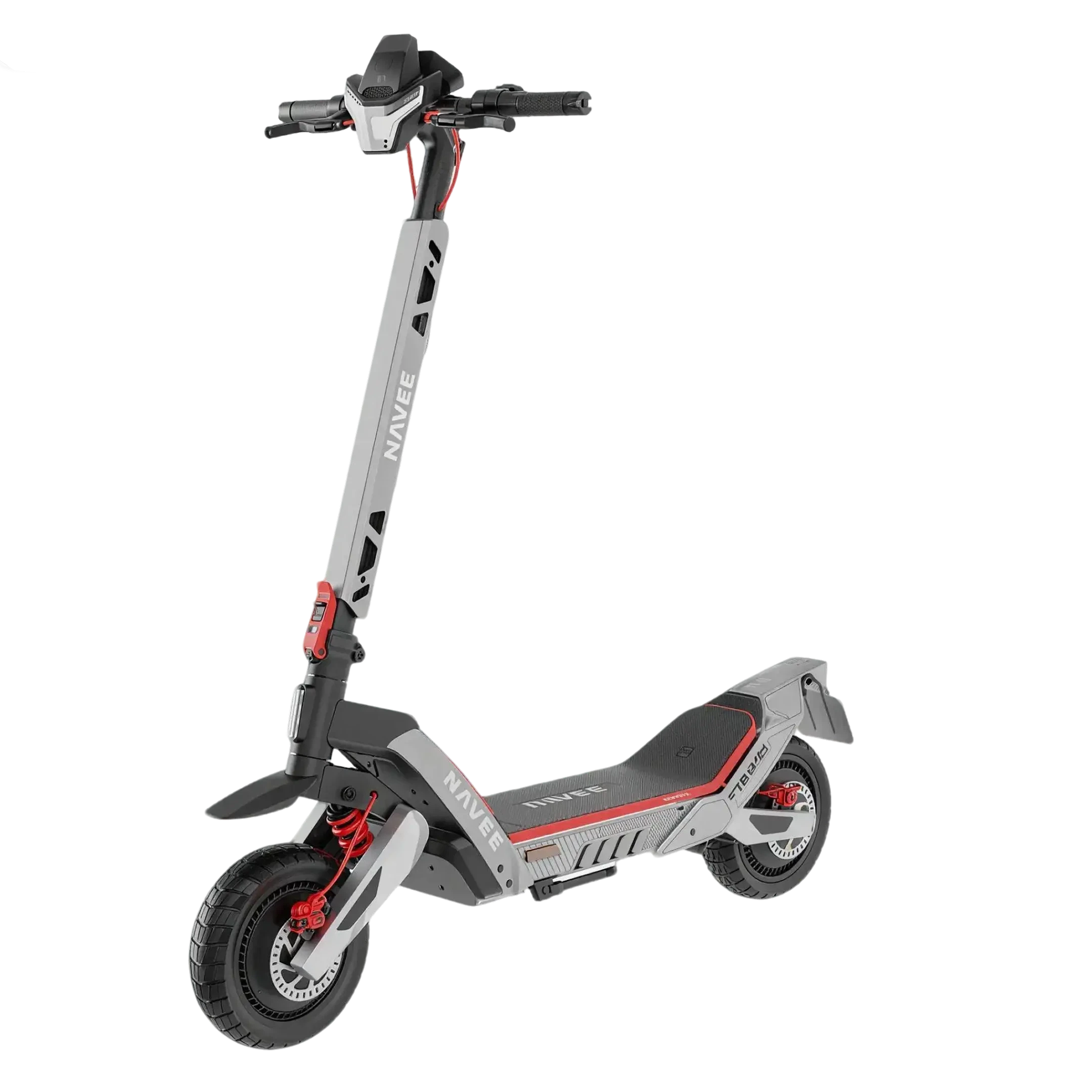

NAVEE XT5 Ultra

Maximum power 2200 W×2
Dual shock-absorbing front and rear suspension
Triple braking system
Maximum slope 45%
Maximum range up to 90 km

Optional accessories

Sold separately

NAVEE XT5 Ultra

Ready to go.

NAVEE XT5 Ultra€1.274,15
In all €1.274,15
NAVEE XT5 Ultra

NAVEE XT5 Ultra

Product details Box contents Technical Data Comparison FAQ Notice

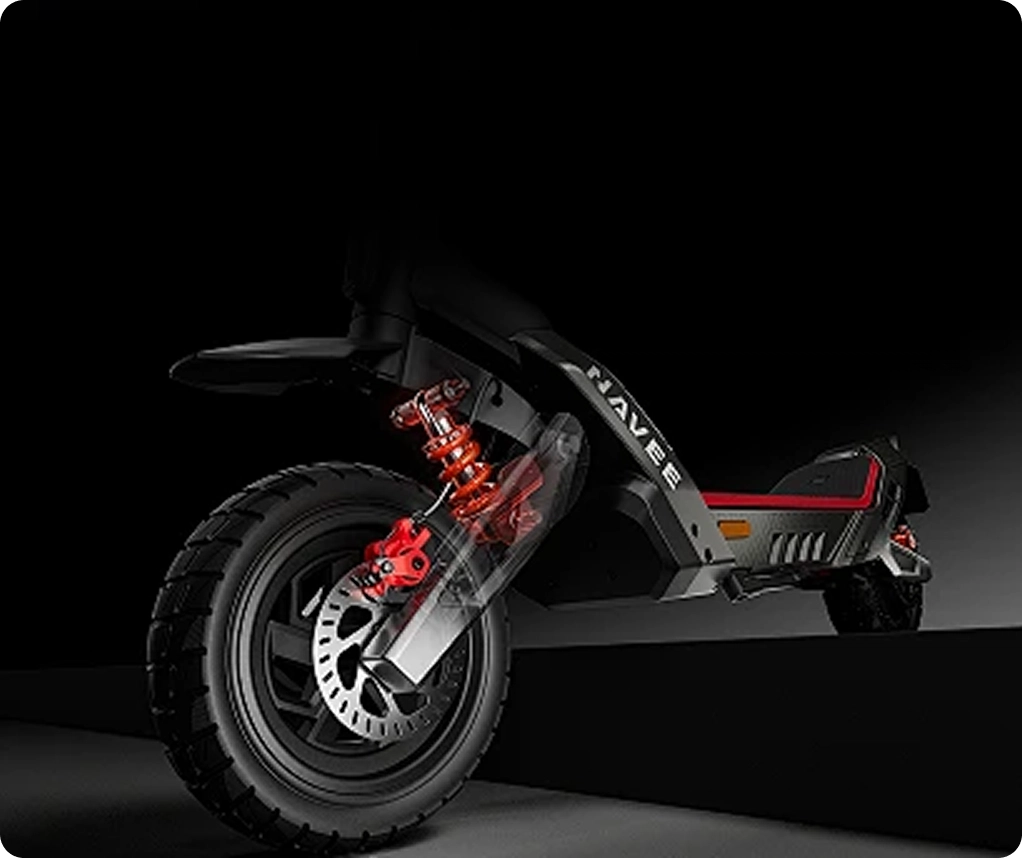

Double lateral damping arm suspension at the front and rear

Double lateral damping arm suspension at the front and rear

Triple braking system

Triple braking system

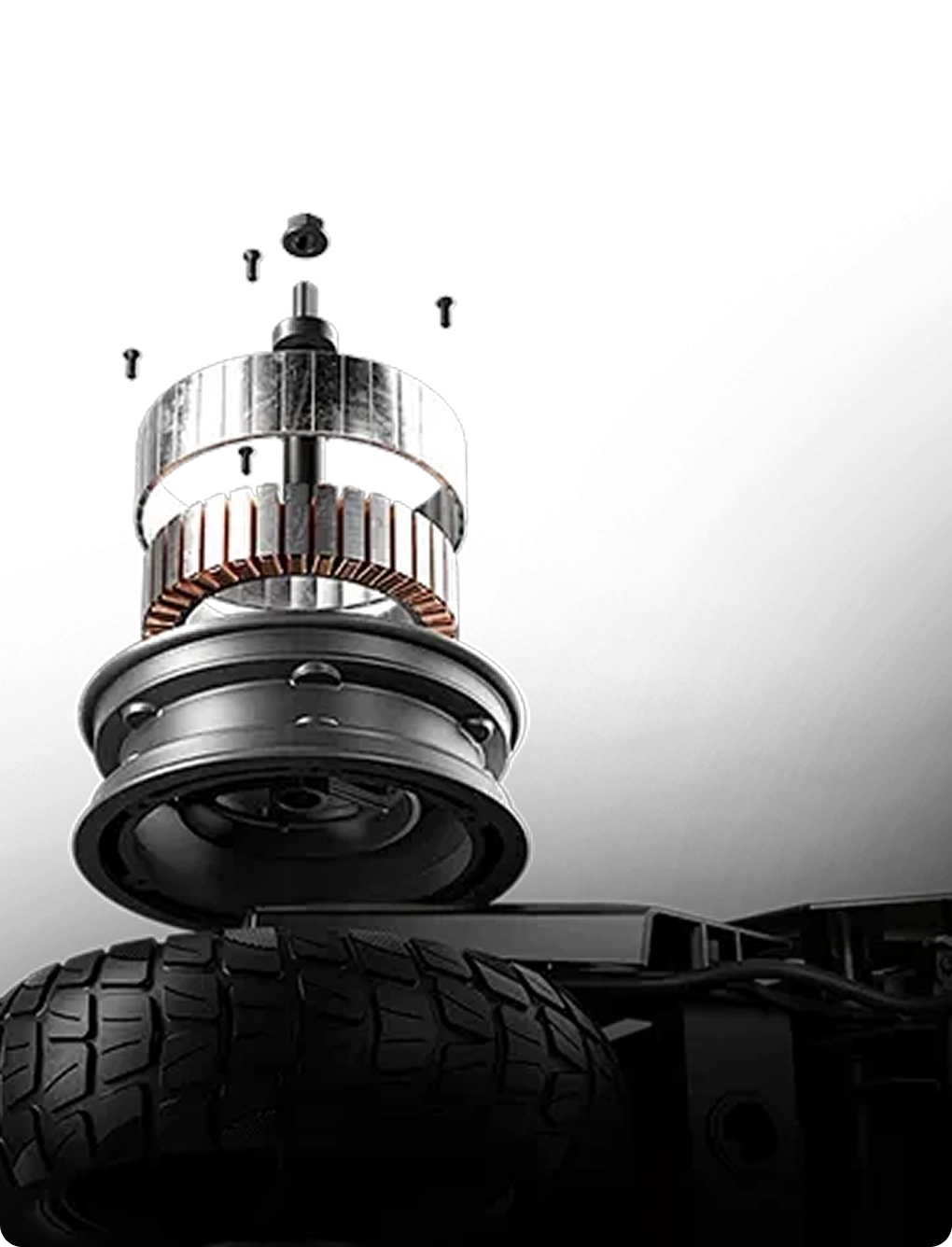

XT<strong>5</strong>

XT5 Ultra

Maximum power
%
Steepest ascent
SmartRide

SmartRide

0 -Customs
Tubeless tires

0 km
reach

0 h
Fast charging with 10A charger**

Unleash extreme power

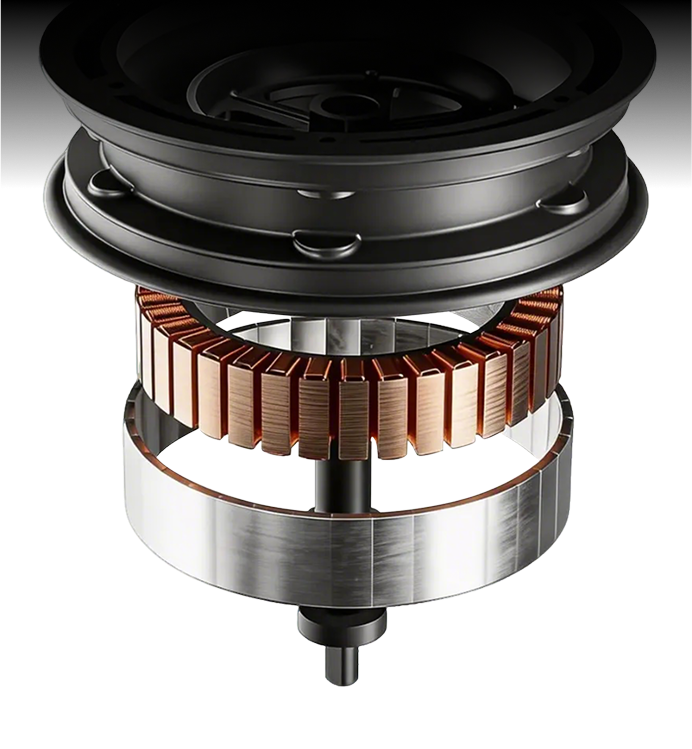

Motor showcase
Unleash the beast
Maximum power engines
%
Steepest ascent

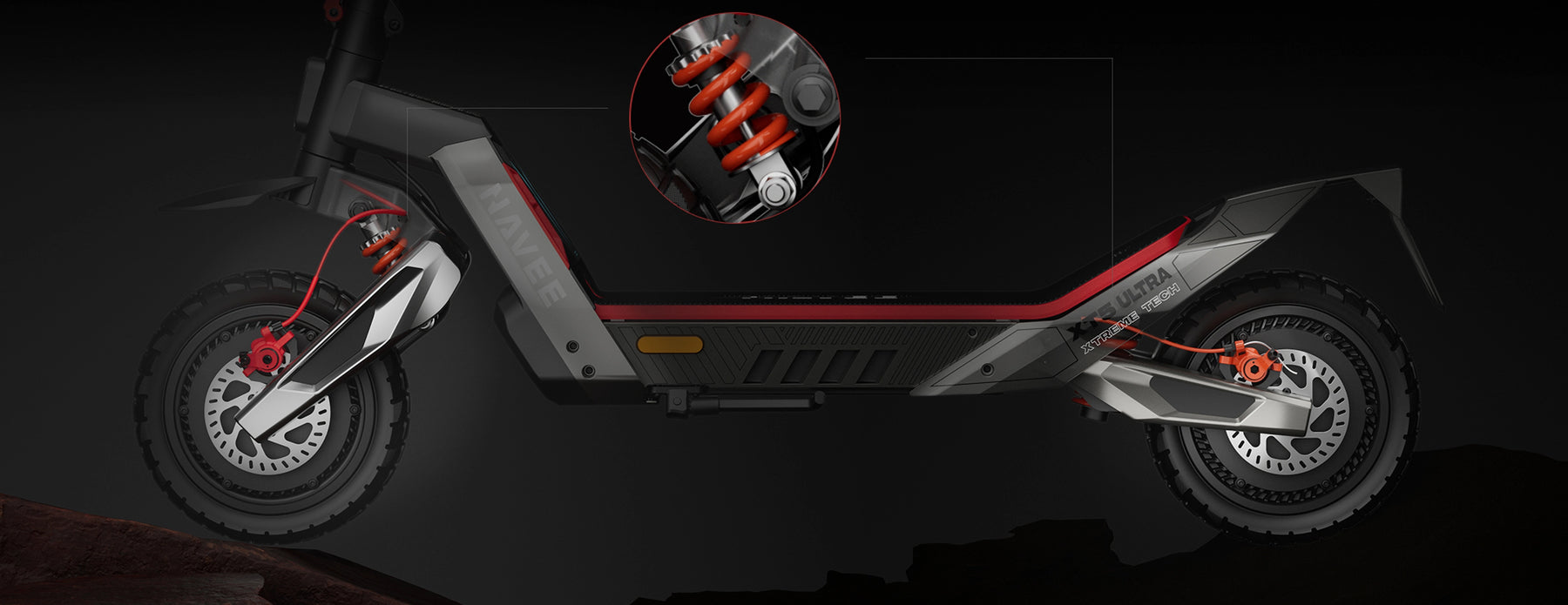

Patented double damping arm suspension

The enhanced front and rear suspension, with 60 mm of travel, ensures a smooth and comfortable ride even on rough terrain and over deep potholes.
Patented double damping arm suspension
0 mm
swallow obstacles
They can swallow craters 10 cm deep and bounce right back.

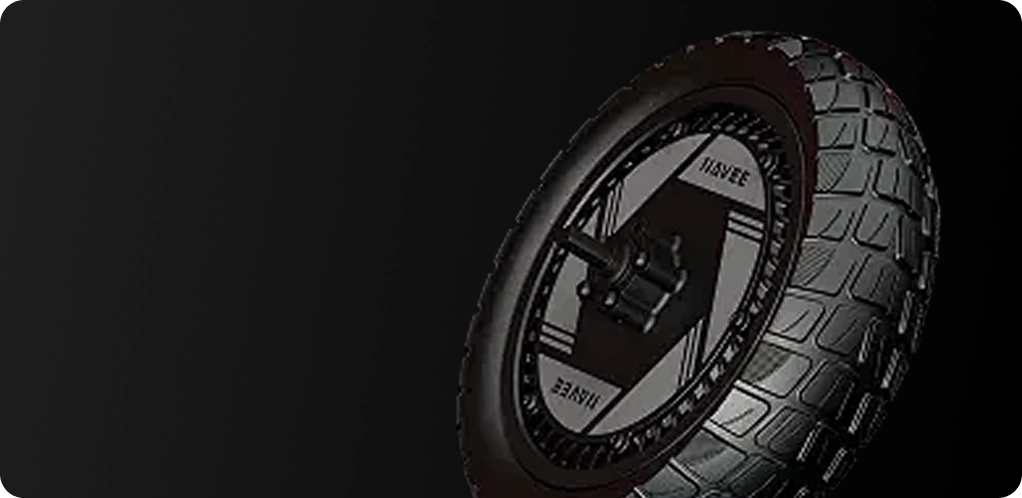

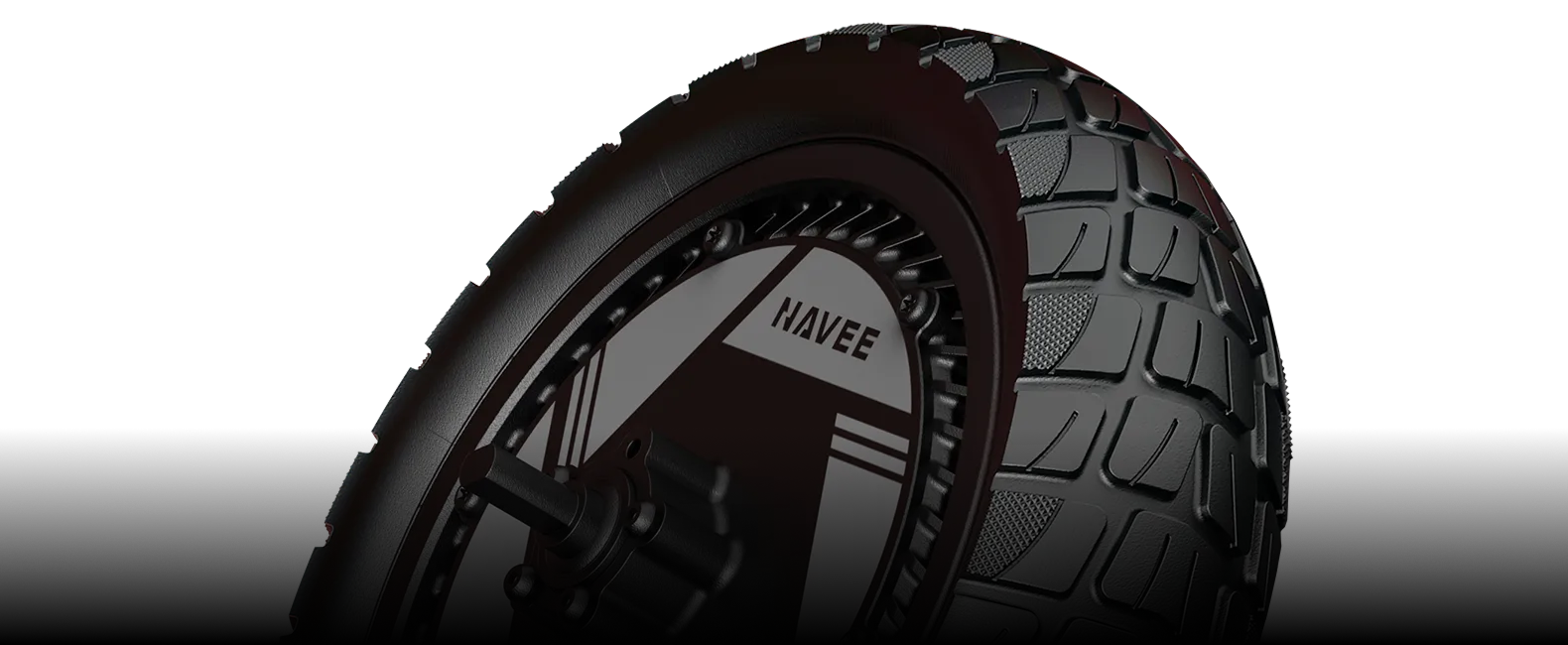

12-inch Tubeless All-Terrain Tires

The large 12-inch tubeless tires offer excellent grip, puncture resistance, and optimal stability on mud, gravel, sand, and rough terrain.
Motor showcase
Large
-customs
Tubeless all-terrain tires

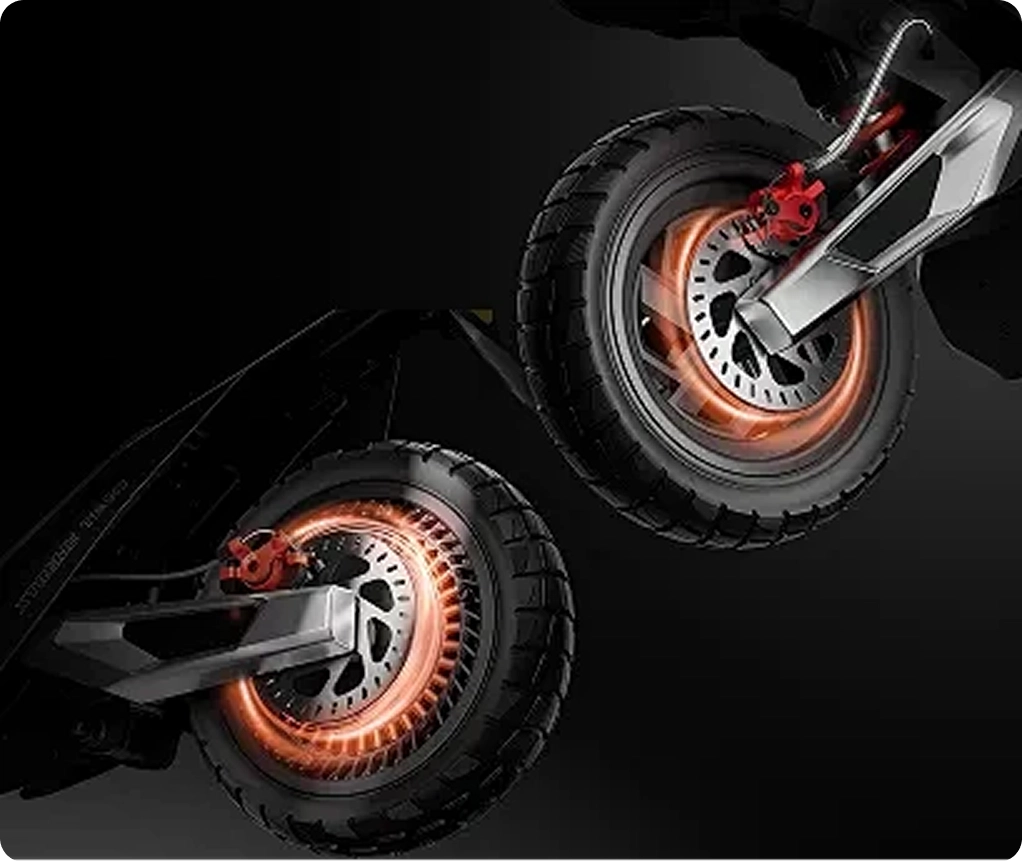

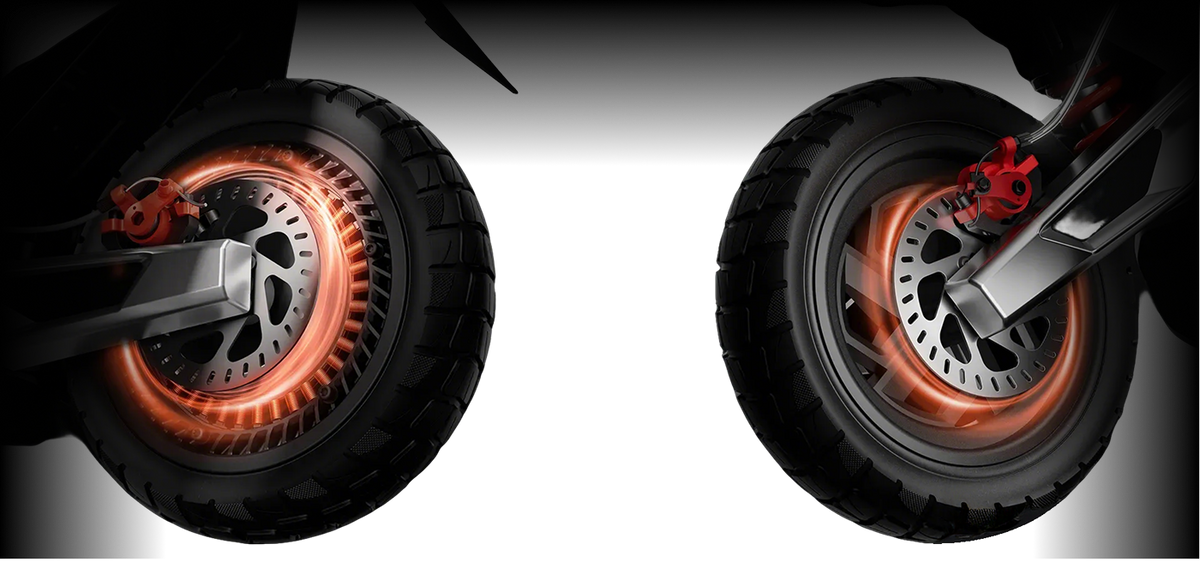

Triple braking system

Front and rear disc brakes, combined with EABS, ensure short braking distances and safe control in all weather conditions.
Brakes Left

mm

front and rear disc brakes

Instantaneous braking power, even in rain or mud. The linear response ensures consistent control at all speeds.

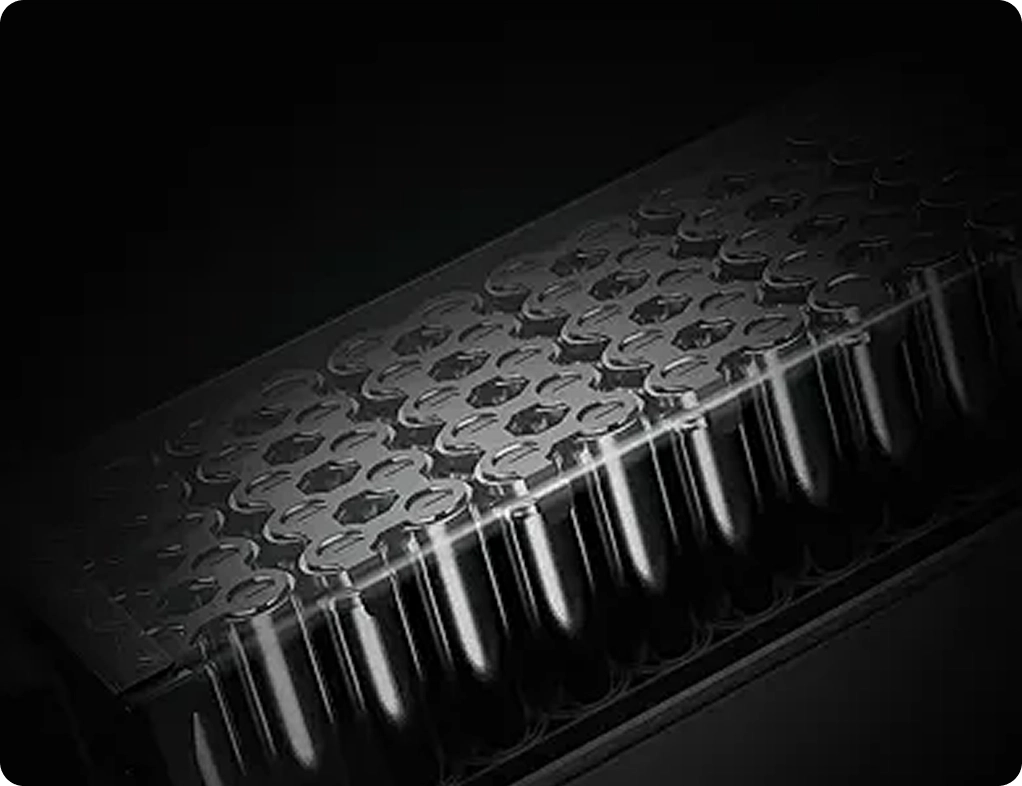

Long-lasting battery

Range of up to 90 km on a single charge (at 15 km/h). An optional external battery extends the range to up to 136 km.
Motor showcase
Qui
Built-in battery
for battery safety

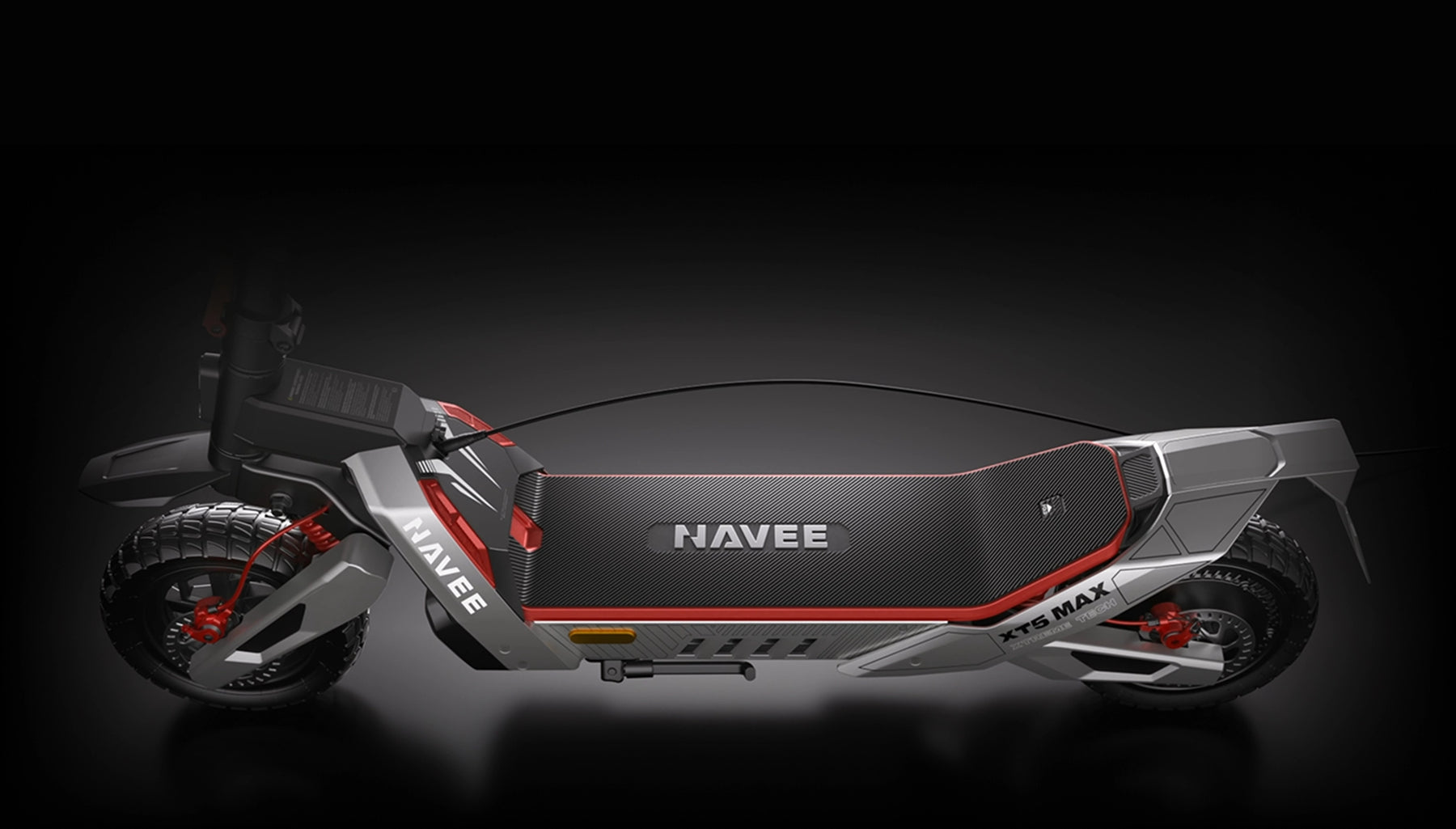

Lightning Charging Technology

With the optional 10A fast charger, the battery is fully charged in just 2 to 3 hours, 50% faster than with standard charging.
Lightning Charging Technology
0
10A Charger
0 h
4A charger

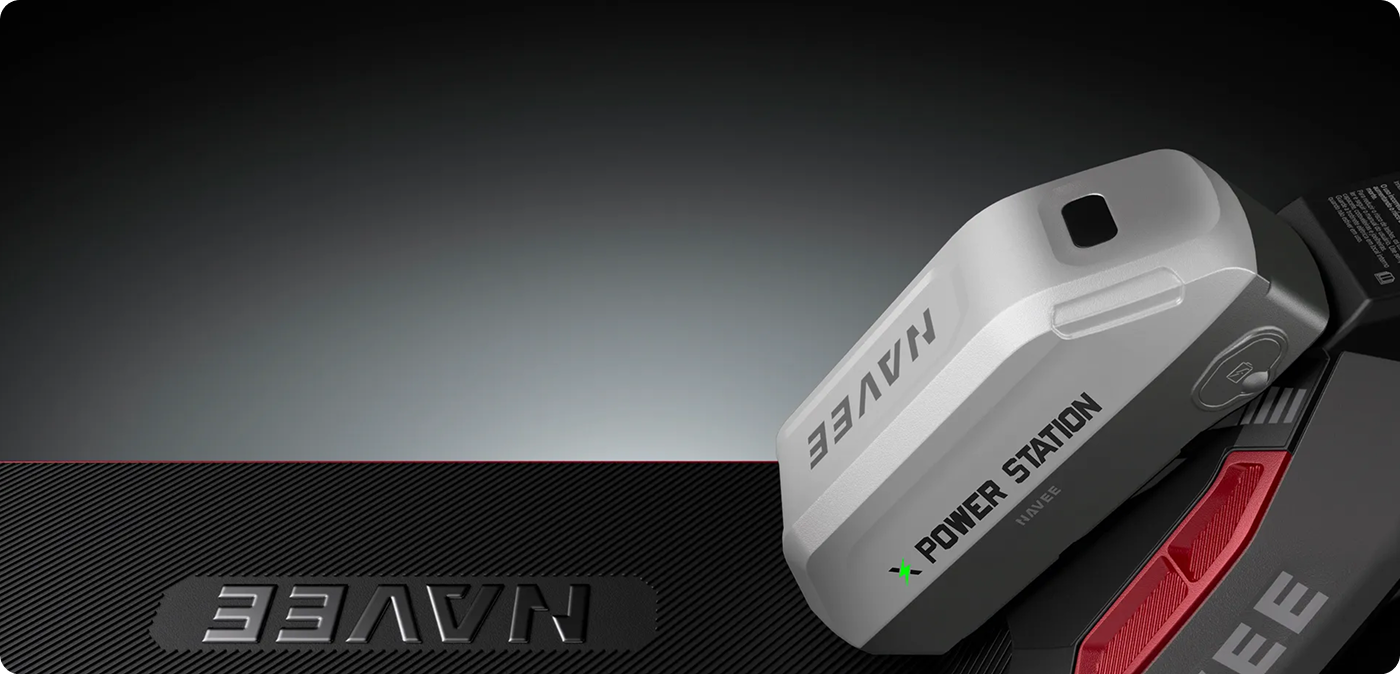

Expand your reach

Expand your reach
0 km/h
Range to
Base zone 90km
Extended scope 136km
0 km/h
Range to
Base area 76km
Extended scope 70.8 miles

Intelligence that respects nature

Traction Control System

Traction Control System

for maximum stability on slippery surfaces

IPX6 water resistance rating

IPX6 water resistance rating

Can be used without issue even in heavy rain.

Apple's Find My Integration

Apple's Find My Integration

Find your scooter at any time (even when it's off).

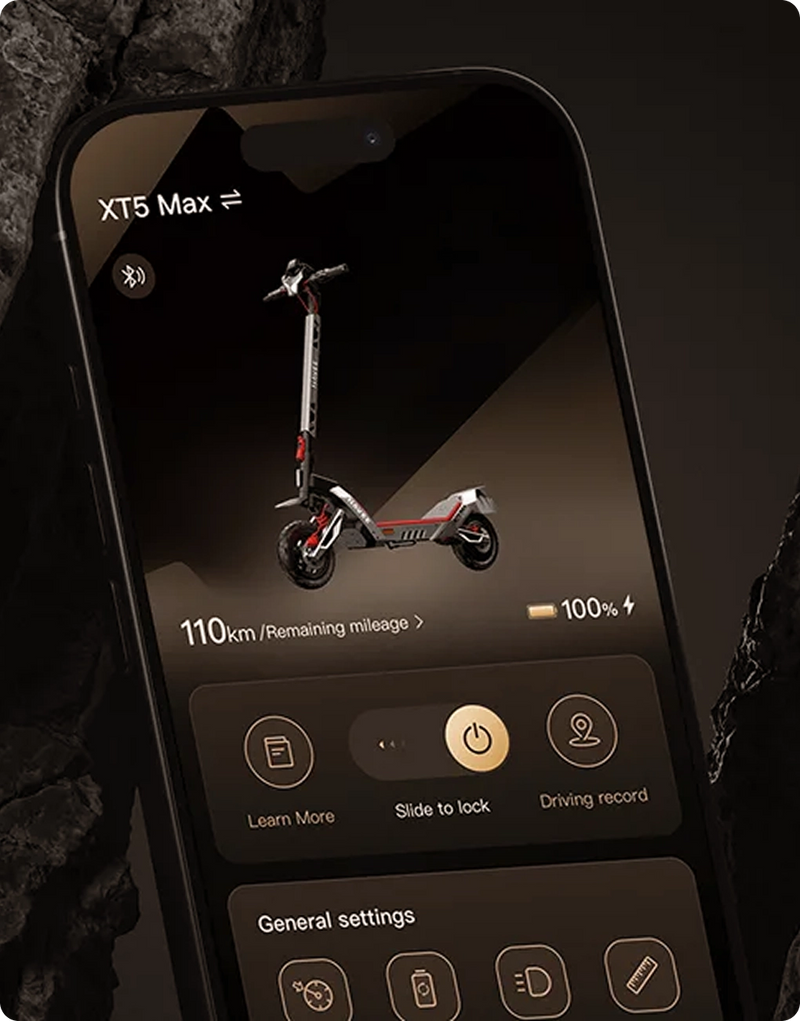

NAVEE Smart App

NAVEE Smart App

Real-time data, remote lock, custom settings, and more

Scope of services

Navee XT5 Ultra

charger

seen

Allen key

User manual

Features

NAVEE XT5 Ultra

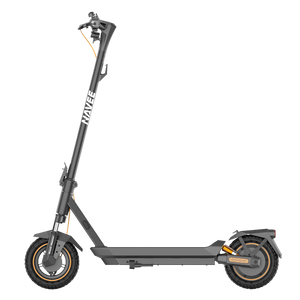

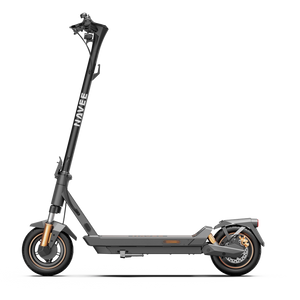

NAVEE GT3 Max
GENERAL INFORMATION
Certified Model
XT5 Ultra EU
Maximum Load
150 kg
Maximum Slope
45 %
Maximum Factory Speed
6 / 20 / 25 km/h
BATTERY
Battery Voltage
46.8 V
Battery Capacity
899 Wh
Cell Type
18650 (13s6p)
Cell Capacity
19.2 Ah
Battery Weight
4200 g
POWER
Rated Power
1000 W (500 W × 2)
Maximum Power
4400 W (2200 W × 2)
Range (15 km/h)
90 km
Range (20 km/h)
75.5 km
Range (25 km/h)
65 km
CHARGING & FEATURES
Standard Charging Time
5-6 h
Fast Charging Time
2-3 h
Ingress Protection Rating
IPX6
Bluetooth
Yes
Smartphone App
NAVEE APP
Apple Find My
Yes (iOS)
DIMENSIONS & WEIGHT
Dimensions (Unfolded)
1360 × 627 × 1400 mm
Dimensions (Folded)
1360 × 627 × 655 mm
Deck Width
210 mm
Net Weight
38.6 kg
Gross Weight
45.6 kg
BRAKING & SUSPENSION
Braking System
Front disc brake + Rear disc brake + EABS
Suspension System
Patented Damping Arm™ suspension system
LIGHTING & MISCELLANEOUS
Headlight
9W automatic detection

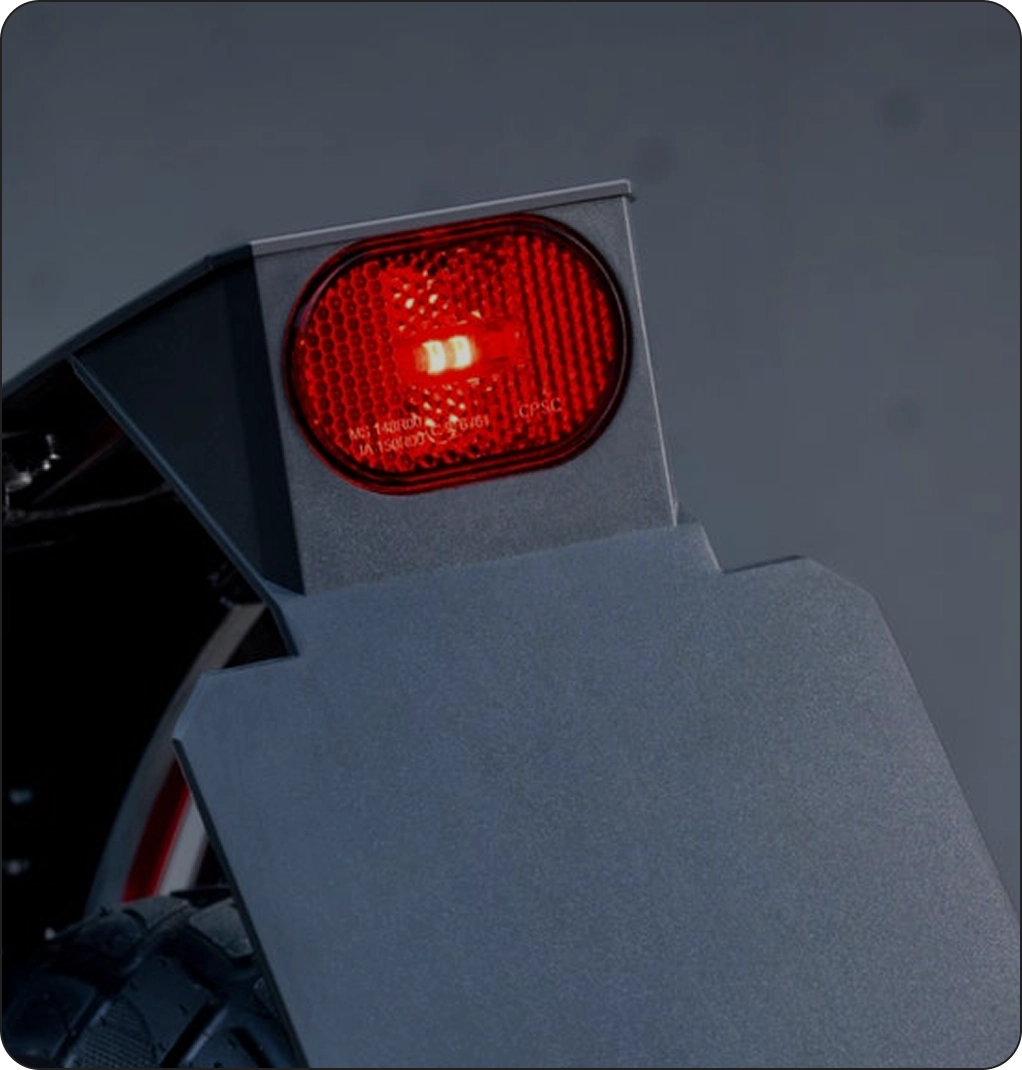

Brake Light
2W Red light

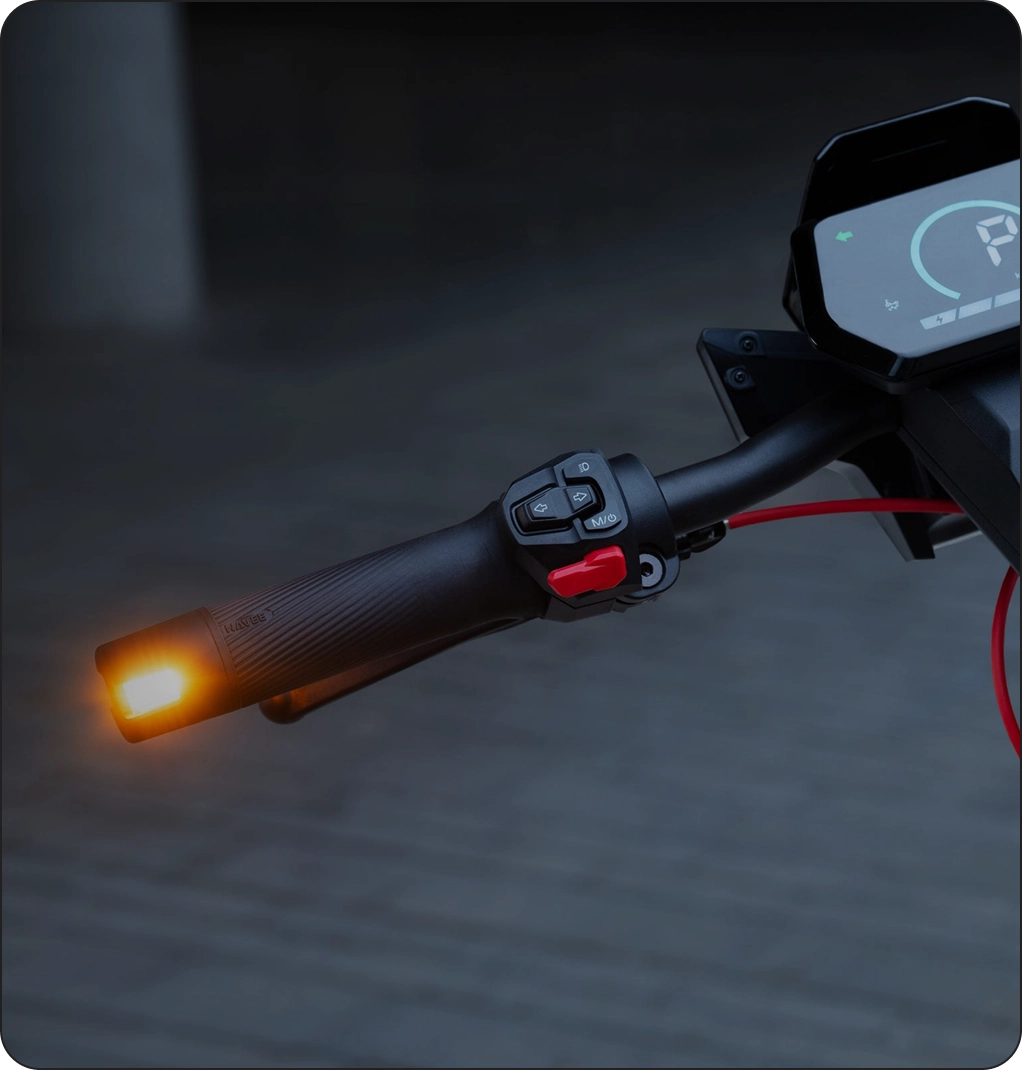

Turn Signals
1.6W Turning light
Display
5 inch LED screen
Other Functions

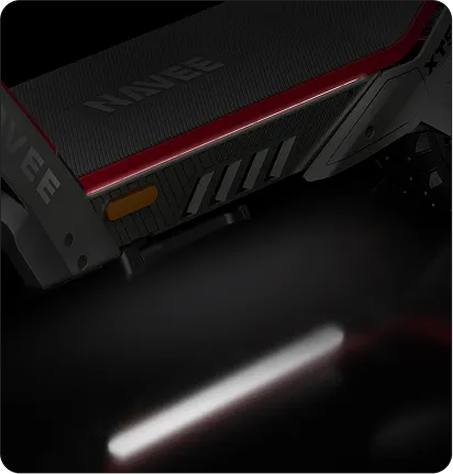

Daytime running light, logo lights, ambient lights, 10A fast charger (optional), optional battery, anti-slip TCS, Bluetooth unlocking, BMS
GENERAL INFORMATION
Certified Model
GT3 Max
Maximum Load
120 kg
Maximum Slope
22 %
Maximum Factory Speed
6 / 20 / 25 km/h
BATTERY
Battery Voltage
46.8 V
Battery Capacity
596.7 Wh
Cell Type
18650 (13s5p)
Cell Capacity
12.75 Ah
Battery Weight
3200 g
POWER
Rated Power
400 W
Maximum Power
1000 W
Range (15 km/h)
75 km
Range (20 km/h)
65 km
Range (25 km/h)
55 km
CHARGING & FEATURES
Standard Charging Time
10 h
Fast Charging Time
not supported
Ingress Protection Rating
IPX5
Bluetooth
Yes
Smartphone App
NAVEE APP
Apple Find My
Yes (iOS)
DIMENSIONS & WEIGHT
Dimensions (Unfolded)
1192 × 585 × 1245 mm
Dimensions (Folded)
1192 × 582 × 568 mm
Deck Width
180 mm
Net Weight
23 kg
Gross Weight
26.4 kg
BRAKING & SUSPENSION
Braking System
Front drum brake + Rear EABS
Suspension System
Front fork + rear shock absorber cylinder
LIGHTING & MISCELLANEOUS
Headlight
Automatic detection
Brake Light
Red light
Turn Signals
Turning light
Display
LED screen
Other Functions
Anti-slip TCS, Bluetooth lock, BMS

Find the model that's right for you.

Maximum Power
2200w×2
1000w
1638w
Battery
46.8V 899Wh
46.8V 596.7Wh
46.8V 596.7Wh
Maximum Range
90km(15km/h)
75km
90km(15km/h)
Maximum Slope
45%
22%
28%
Tires
12-inch tubeless off-road tires
10-inch tubeless tires
10-inch tubeless tires
Suspension
Damping Arm™ Suspension System
Front suspension fork + rear shock absorber cylinder
Front fork + rear shock absorber cylinder
Brakes
Front: Drum brake; Rear: EABS
Front: Drum brake; Rear: EABS
Front: Drum brake; Rear: Disc + EABS
Maximum Payload
150kg
120kg
130kg
Fast Charging
Yes
Yes
Yes
Weight
38.6 kg
23kg
24.8 kg
Maximum Power
2200w×2
1000w
1638w
Battery
46.8V 899Wh
46.8V 596.7Wh
46.8V 596.7Wh
Maximum Range
90km(15km/h)
75km
90km(15km/h)
Maximum Slope
45%
22%
28%
Tires
12-inch tubeless off-road tires
10-inch tubeless tires
10-inch tubeless tires
Suspension
Damping Arm™ Suspension System
Front suspension fork + rear shock absorber cylinder
Front fork + rear shock absorber cylinder
Brakes
Front: Drum brake; Rear: EABS
Front: Drum brake; Rear: EABS
Front: Drum brake; Rear: Disc + EABS
Maximum Payload
150kg
120kg
130kg
Fast Charging
Yes
Yes
Yes
Weight
38.6 kg
23kg
24.8 kg

Frequently Asked Questions

Under ideal conditions (15 km/h, 75 kg, flat road), up to 90 km. Actual range depends on weight, terrain, temperature, and riding style.

Yes. With the optional 10A fast charger, the battery is fully charged in just 2 to 3 hours.

A patented dual-damping-arm suspension system at the front and rear with 60 mm travel for excellent comfort on rough terrain.

Yes. The large 12-inch off-road tubeless tires offer excellent grip and stability on mud, gravel, sand, and rough terrain.

The triple braking system (front and rear disc brakes + EABS) ensures short braking distances and reliable control in all weather conditions.

Yes. Thanks to its IPX6 waterproof rating, you can ride even in heavy rain and through puddles.

Yes. The TCS traction control system prevents the wheels from spinning on wet roads or loose surfaces.
