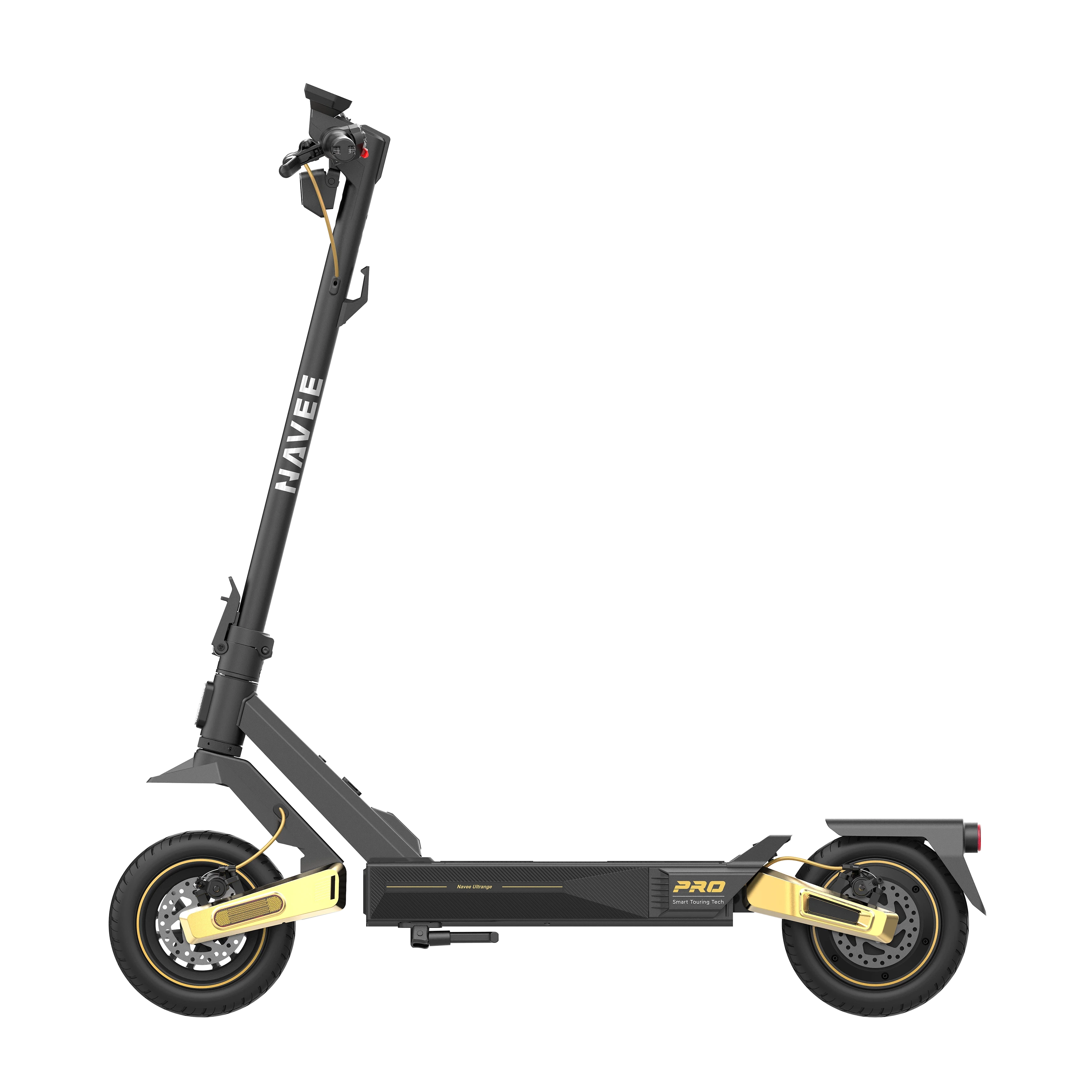

NAVEE ST5 Pro

Maximum power 1350W

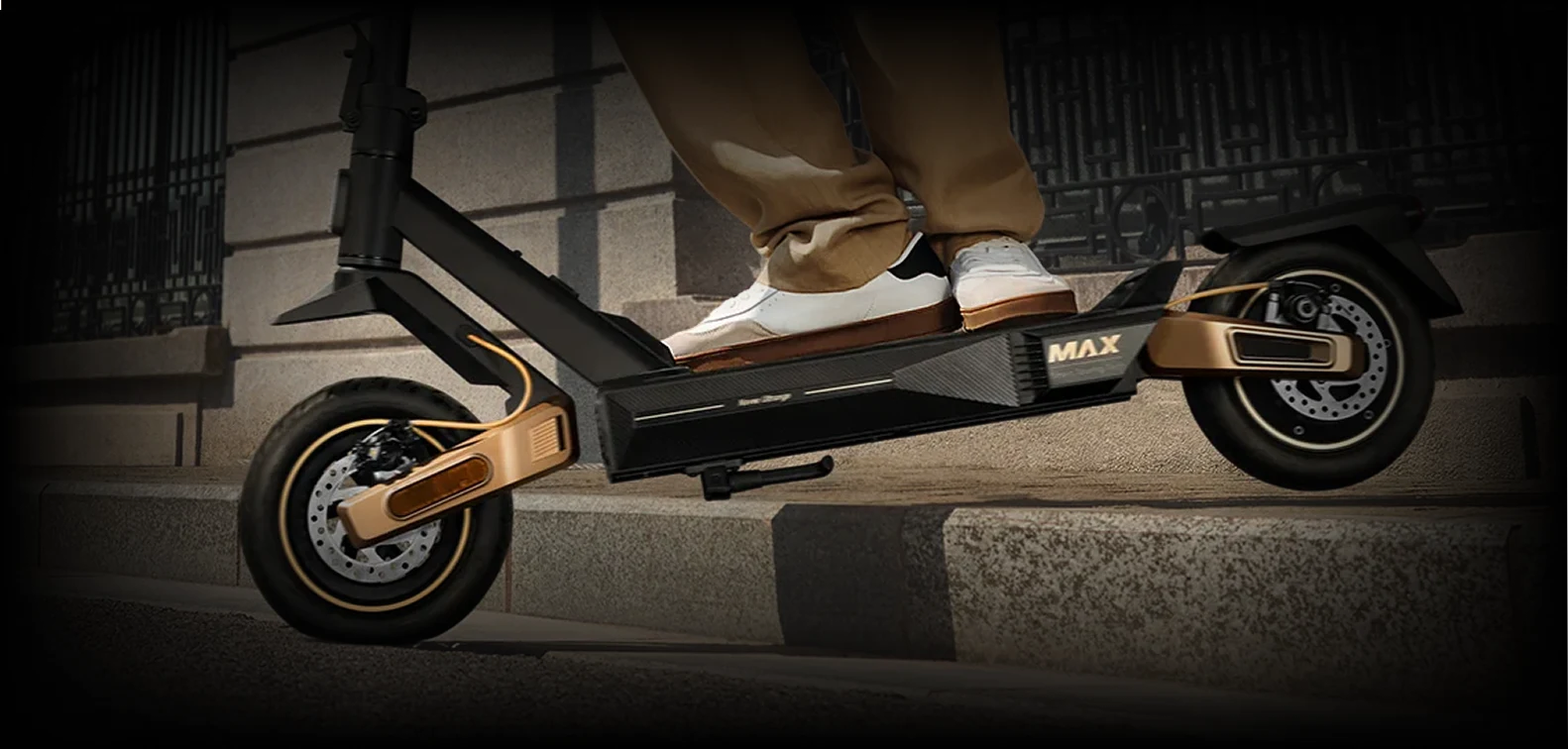

Dual shock-absorbing front and rear suspension
Triple braking system
Maximum gradient 26%
Maximum range up to 75km

ESSENTIAL PACKAGE

Ready to go.

Optional accessories

Sold separately

NAVEE ST5 Pro

Ready to go.

NAVEE ST5 Pro€629,10
In all €629,10
NAVEE ST5 Pro

NAVEE ST5 Pro

Product details Box contents Technical Data Comparison FAQ Notice

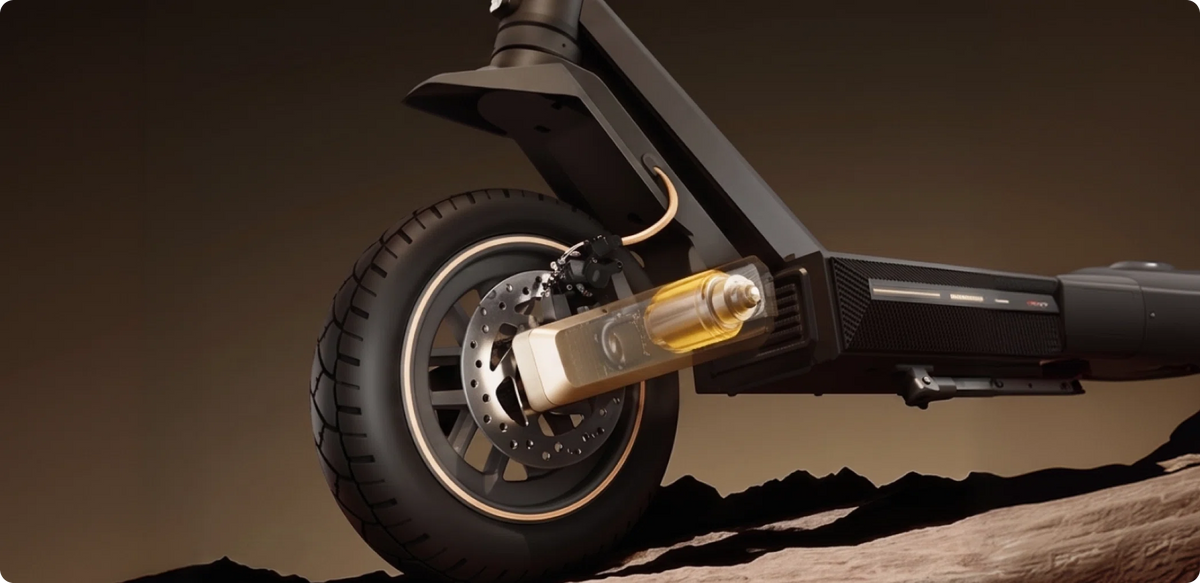

Double Damping Arm™

Double Damping Arm™

Suspension

0 W
WHyper Engine

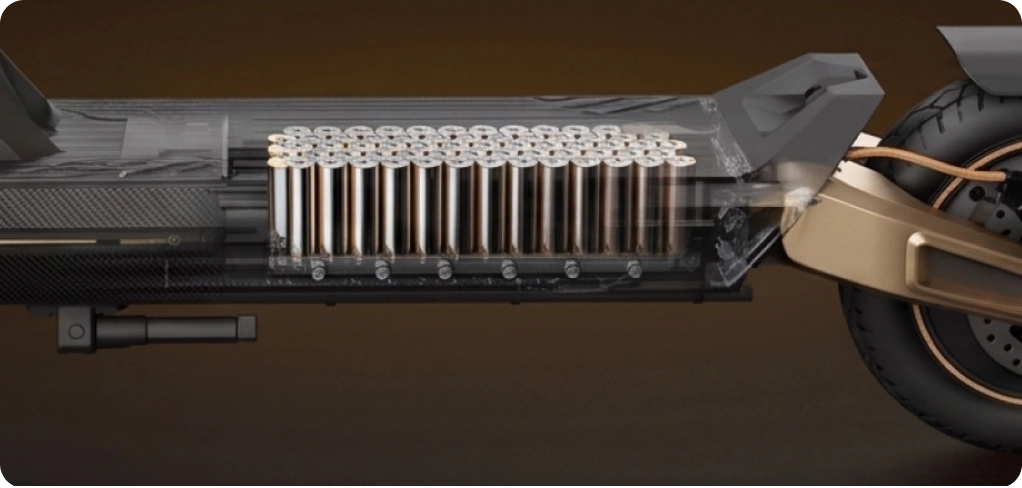

NavUltrange™

NavUltrange™

Maximum range 75 km
3.5

3.5"

Smart TFT display

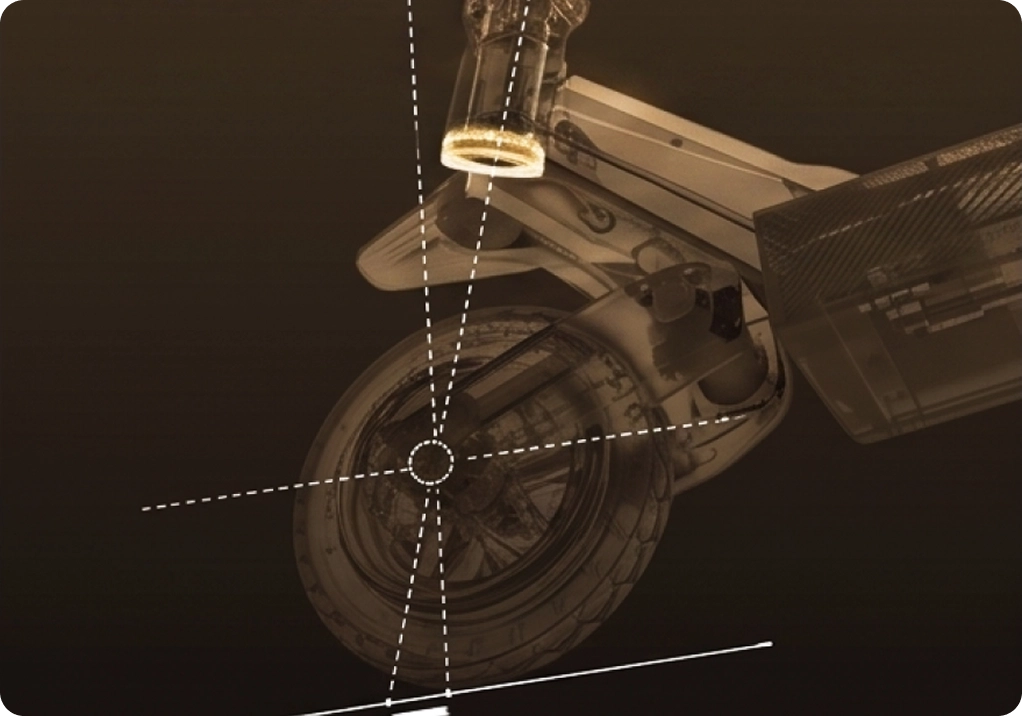

NavXRide™

NavXRide™

Super Controlifor – for safe driving

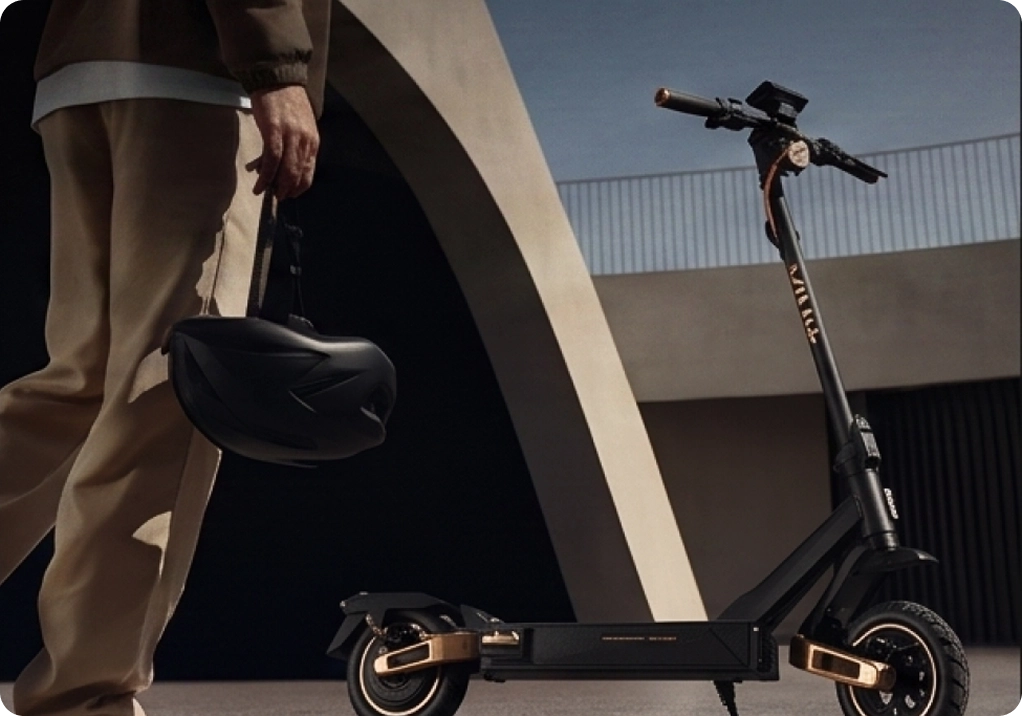

Hands-free locking

Hands-free locking

NavFlyLock™

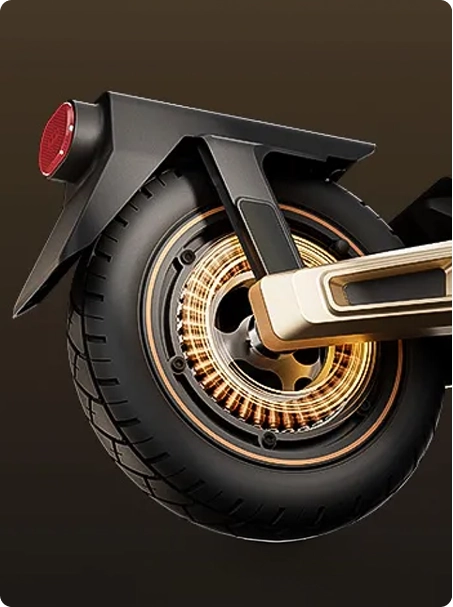

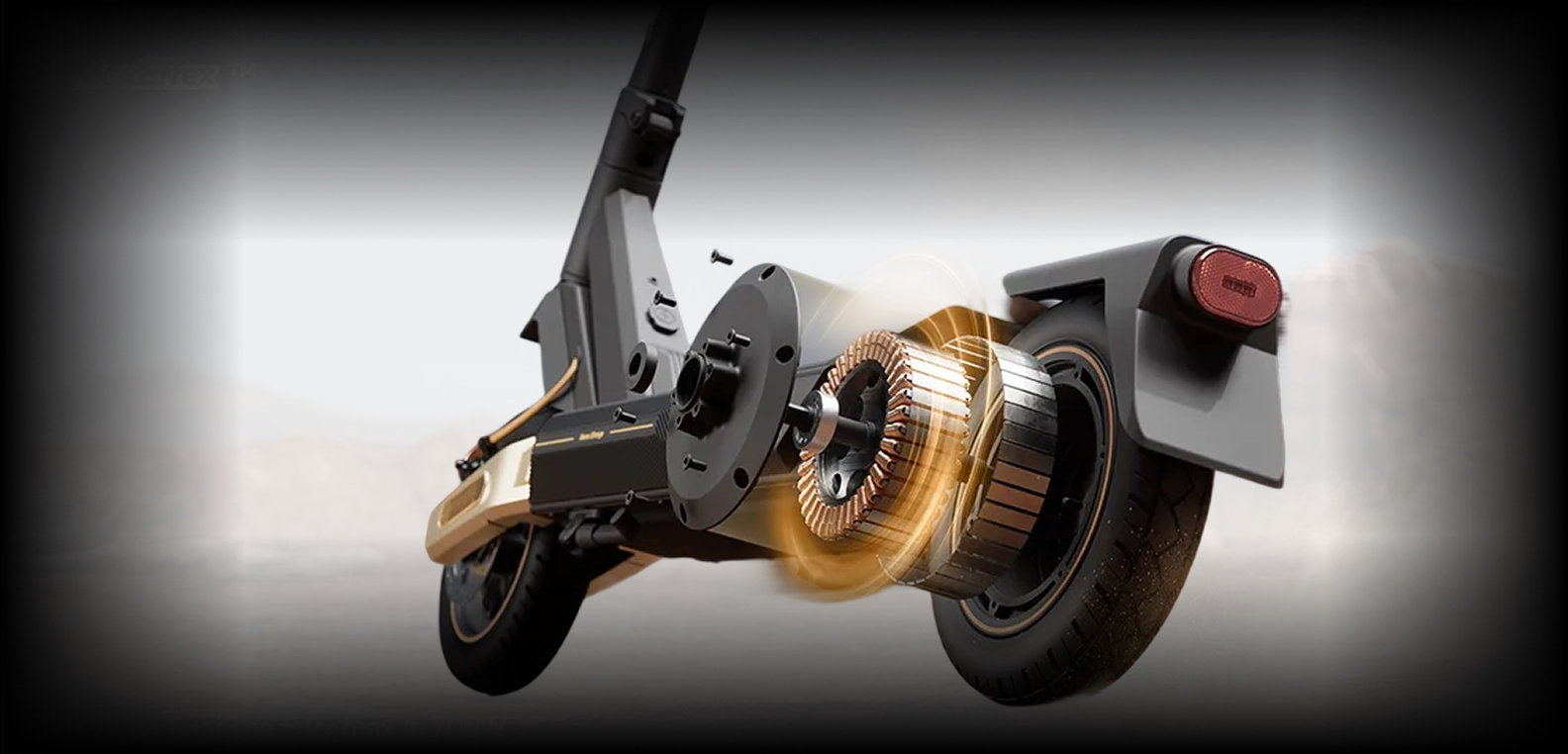

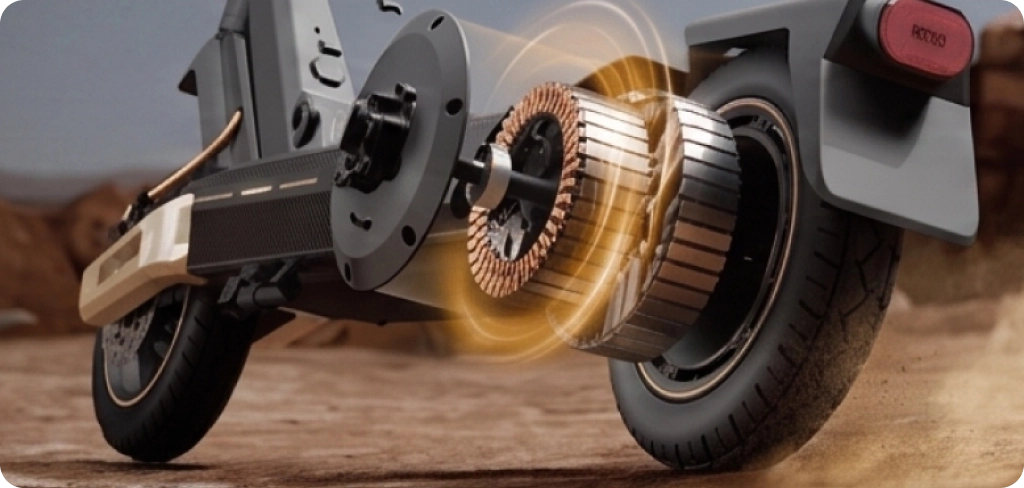

Ultra-powerful motor: 1350 W peak power

The next-generation motor offers exceptional performance and consistent climbing ability on slopes up to 26%, while maintaining reliable temperature regulation.
Motor showcase
Hyperdrive:
W
Optimal Performance

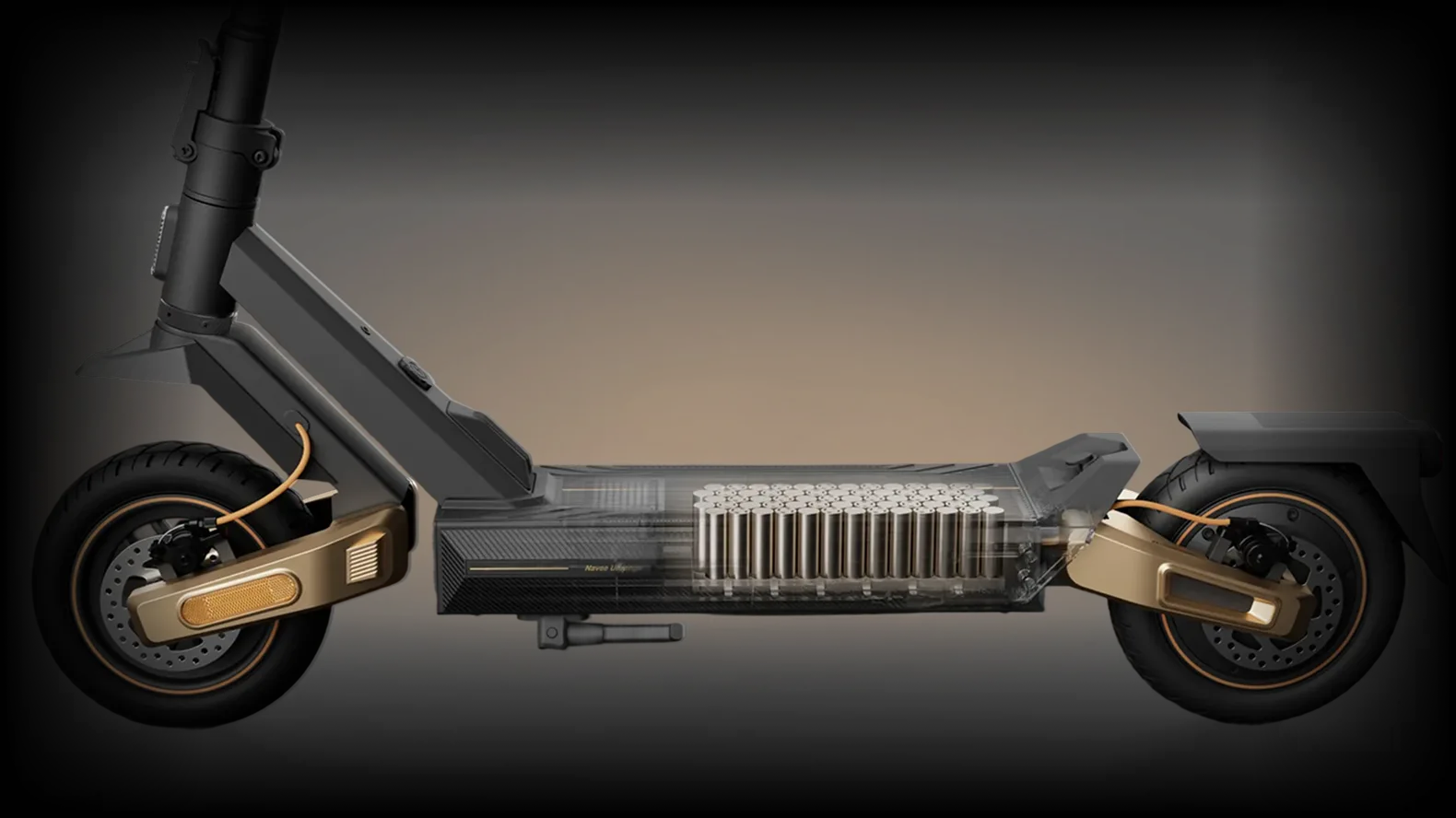

Drive further, pay less

Designed from the outset for optimum efficiency: the combination of low rolling resistance tires and intelligent motor control maximizes range per charge.
Motor showcase
km
Maximum range

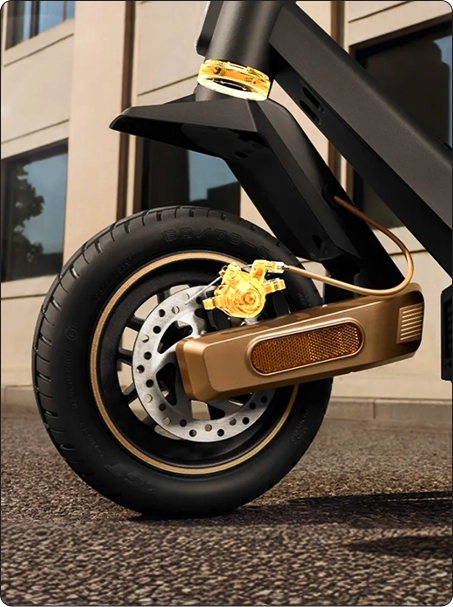

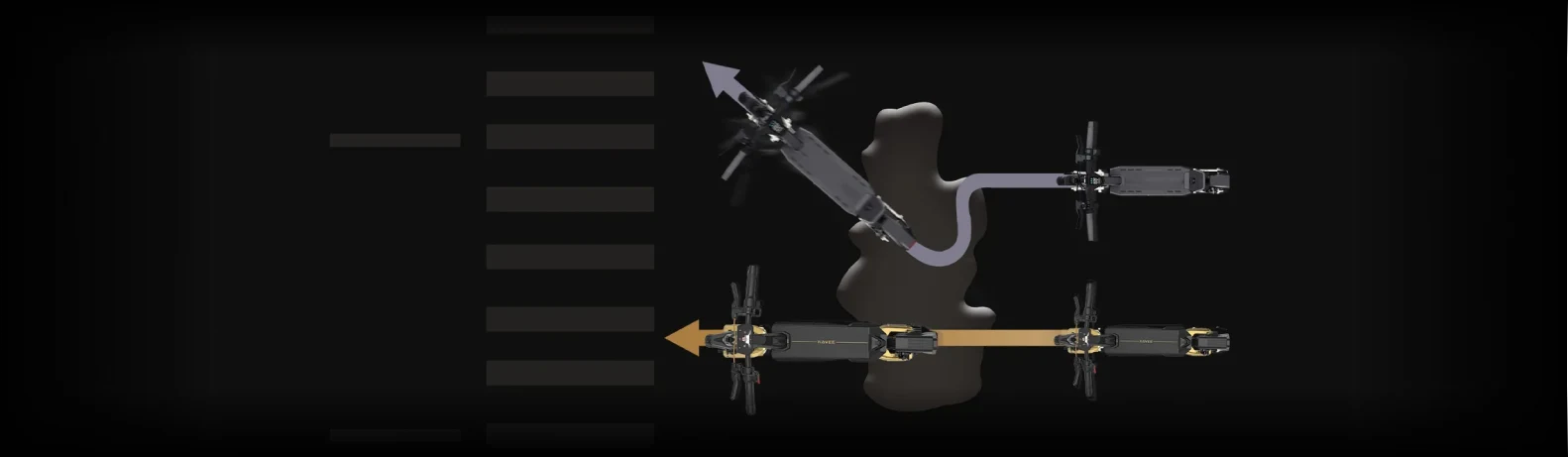

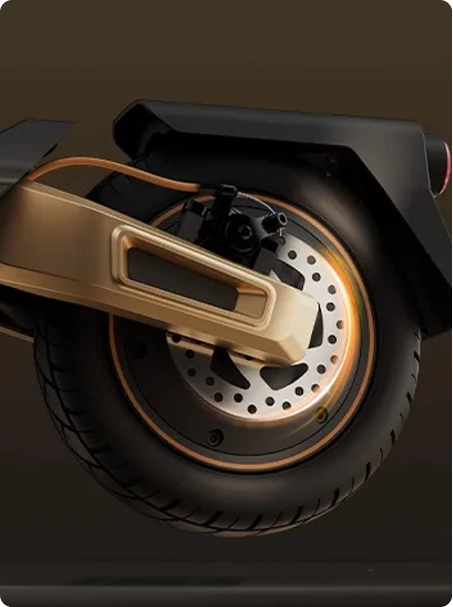

Triple braking system and NavXride™ stability

The triple braking system ensures shorter braking distances and reliable control in all weather conditions, while NavXride™ adaptive steering damping improves cornering stability and prevents skidding.

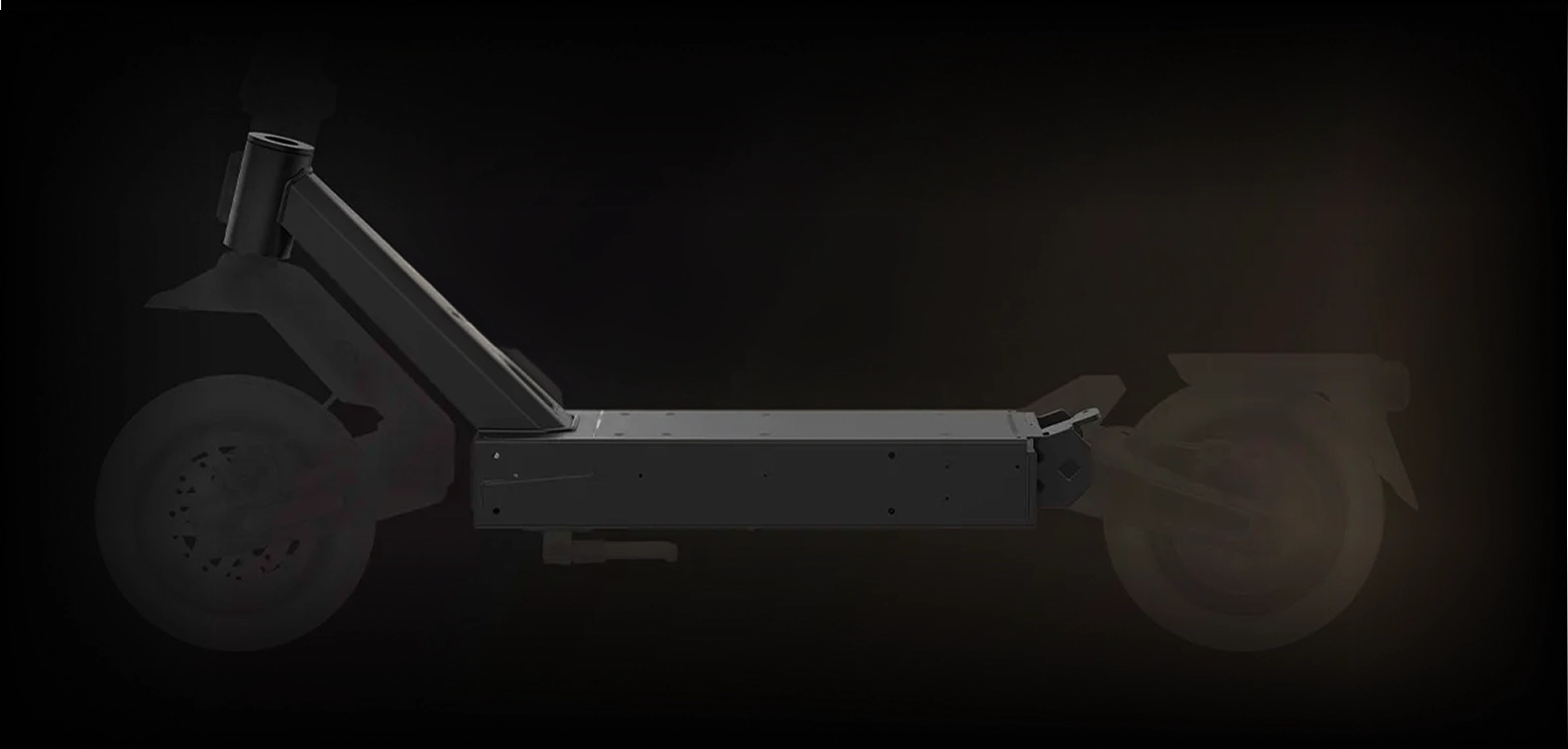

Load capacity up to 150 kg

The frame is made of automotive-grade QsTE steel and features precise construction and seamless welds, ensuring exceptional strength and durability.
Motor showcase
kg

Reliable traction control

The Traction Control System (TCS) prevents the wheels from spinning on wet or uneven roads, providing greater stability and control – for increased driving safety.
Motor showcase

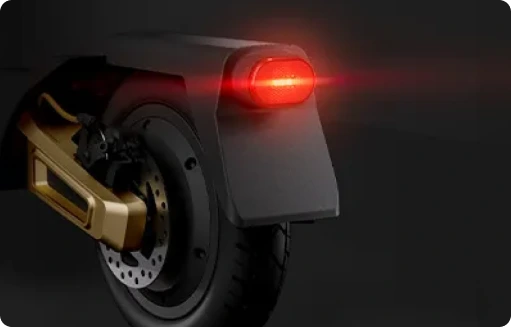

Lighting system for improved road safety

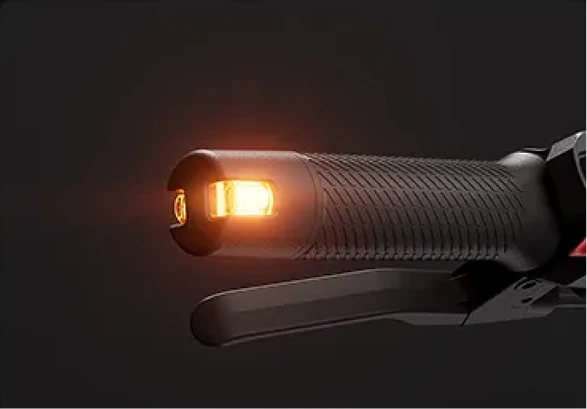

The 6W headlight provides clear road illumination. Integrated turn signals and tail lights enhance all-around visibility, allowing you to see and be seen day and night.

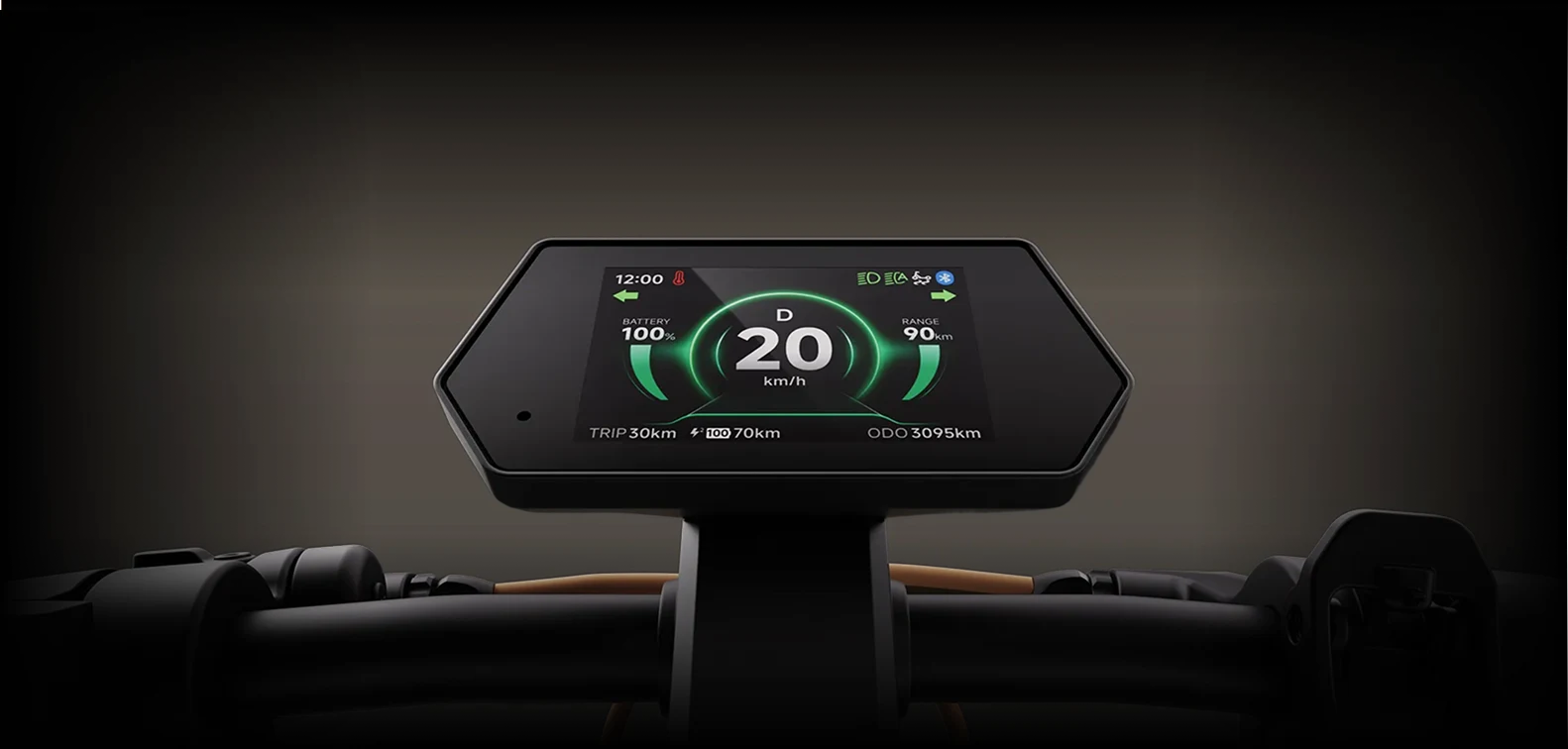

3.5 inch Smart TFT Display

The 3.5-inch TFT screen offers a clear view of all driving data: current speed, battery level, driving mode, and much more.
Motor showcase

10-inch self-sealing tubeless tires

These 10-inch self-sealing tubeless tires are designed to provide stability and grip on various terrains, ensuring a safe riding experience.
Motor showcase

Intelligence that respects nature

Traction Control System

Traction Control System

for maximum stability on slippery surfaces

IPX6 water resistance rating

IPX6 water resistance rating

Can be used without issue even in heavy rain.

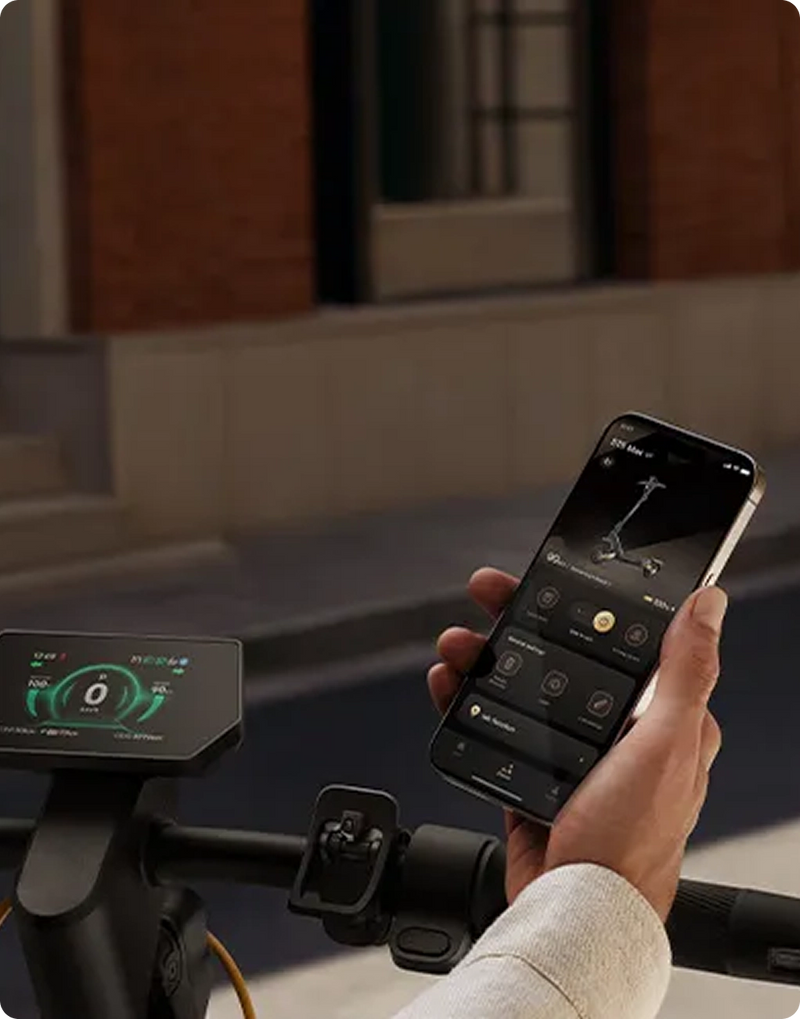

Apple's Find My Integration

Apple's Find My Integration

Find your scooter at any time (even when it's off).

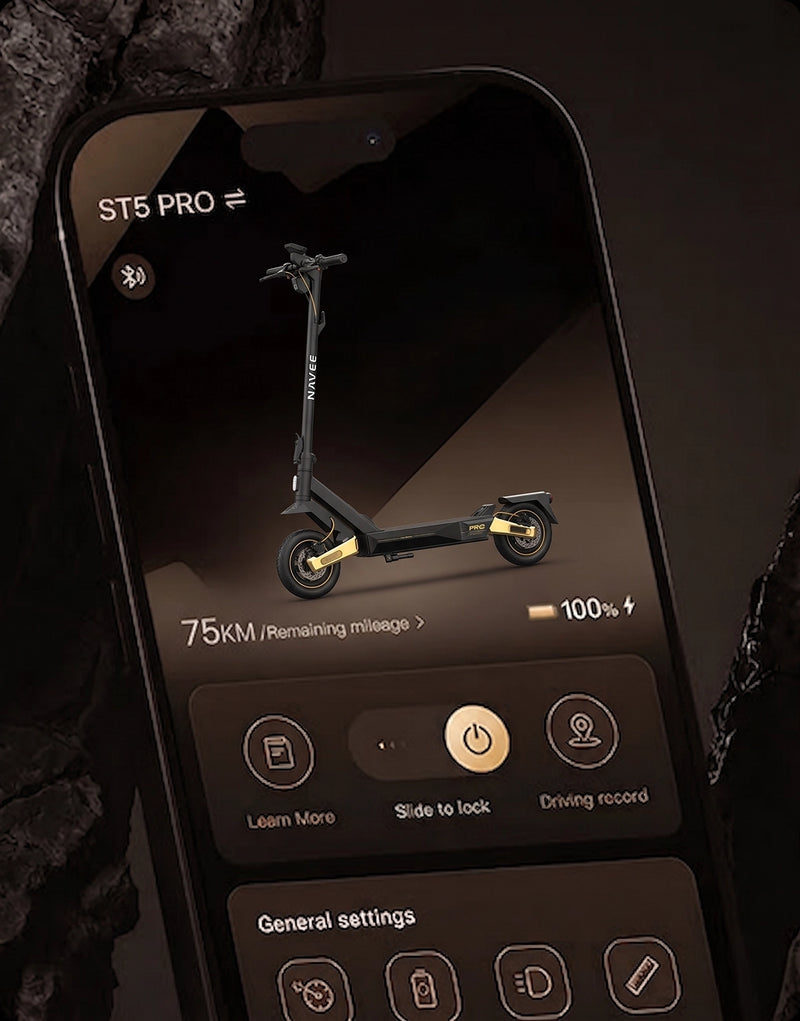

NAVEE Smart App

NAVEE Smart App

Real-time data, remote lock, custom settings, and more

Delivery contents

Navee ST5 Pro

charger

seen

Allen key

User manual

Specifications

NAVEE ST5 Pro
GENERAL INFORMATION
Certified Model
ST5 Pro
Maximum Load
150 kg
Maximum Slope
26 %
Maximum Factory Speed
6 / 20 / 25 km/h
BATTERY
Battery Voltage
46.8 V
Battery Capacity
477.36 Wh
Cell Type
18650 (13s4p)
Cell Capacity
10.2 Ah
Battery Weight
2600 g
POWER
Rated Power
600 W
Maximum Power
1350 W
Range (15 km/h)
75 km
Range (20 km/h)
60 km
Range (25 km/h)
50 km
CHARGING & FEATURES
Standard Charging Time
7 h
Fast Charging Time
1.5 h
Ingress Protection Rating
IPX6
Bluetooth
Yes
Smartphone App
NAVEE APP
Apple Find My
Yes (iOS)
DIMENSIONS & WEIGHT
Dimensions (Unfolded)
1195 × 600 × 1270 mm
Dimensions (Folded)
1193 × 598 × 571 mm
Deck Width
190 mm
Net Weight
24.8 kg
Gross Weight
29.8 kg
BRAKING & SUSPENSION
Braking System
Front and rear disc brakes + EABS
Suspension System
Front and rear shock-absorbing arm suspension
LIGHTING & MISCELLANEOUS
Headlight
6W automatic detection
Brake Light
2W Red light
Turn Signals
1.6W Turning light
Display
3.5 inch TFT screen
Other Functions
Navigation, Incoming call notification, TCS, Find My, Proximity unlocking, BMS

Find the model that's right for you

Maximum Power
1350w
1000w
1000w
Battery
46.8V 477.36Wh
46.8 V 477.36 Wh
46.8 V 477.36 Wh
Maximum Range
75km(15km/h)
60km
60km
Maximum Slope
26%
24%
22%
Tires
10-inch tubeless tires
10-inch tubeless tires
10-inch tubeless tires
Suspension
Front and rear shock-absorbing arm
Front and rear shock-absorbing arm
Front suspension fork + rear shock absorber cylinder
Brakes
Front and rear disc brakes + EABS
Front: Drum brake; Rear: Disc brake + EABS
Front: Drum brake; Rear: EABS
Maximum Payload
150kg
120kg
120kg
Fast Charging
Yes
Yes
Yes
Weight
24.8kg
24kg
22kg
Maximum Power
1350w
1000w
1000w
Battery
46.8V 477.36Wh
46.8 V 477.36 Wh
46.8 V 477.36 Wh
Maximum Range
75km(15km/h)
60km
60km
Maximum Slope
26%
24%
22%
Tires
10-inch tubeless tires
10-inch tubeless tires
10-inch tubeless tires
Suspension
Front and rear shock-absorbing arm
Front and rear shock-absorbing arm
Front suspension fork + rear shock absorber cylinder
Brakes
Front and rear disc brakes + EABS
Front: Drum brake; Rear: Disc brake + EABS
Front: Drum brake; Rear: EABS
Maximum Payload
150kg
120kg
120kg
Fast Charging
Yes
Yes
Yes
Weight
24.8kg
24kg
22kg

Frequently Asked Questions

Before using the vehicle for the first time, you must activate it. Here are the steps to follow:

1. Scan the QR code to download and install the recommended application, following the Quick Start Guide provided in the packaging.

2. Turn on the vehicle; the flashing Bluetooth symbol indicates that the vehicle is awaiting connection.

3. Open the downloaded application, tap "Connect My Device" and follow the instructions to connect your vehicle.

If the remote control does not work, follow these steps to troubleshoot the problem:

1. Press the Menu button five times in a row. The signal light on the dashboard will flash, indicating pairing mode. Press the Power button or one of the two electric assist buttons to confirm pairing. If the signal light and battery light remain on, pairing was successful.

2. Make sure the remote control is sufficiently charged. If not, recharge it.

Start by placing one foot on the pedal, extend the other leg behind you, place both feet on the footrest, and maintain your balance. Then gently press the accelerator to start. It is recommended to ride at a constant speed and avoid sudden accelerations and braking. Note: The electric scooter only starts when it is in freewheel mode and has reached a speed of 5 km/h.

The NAVEE V series electric scooter is suitable for people aged 16 to 50, measuring between 120 and 200 cm; its maximum load is 120 kg. It is forbidden to drive after consuming alcohol or drugs that may impair judgment.

Double-tap the power button quickly to switch between riding modes. The maximum speed is 6 km/h in pedestrian mode, 20 km/h in standard (D) mode, and 20 km/h in sport (S) mode. Please do not change riding modes while riding the scooter. Note: Depending on the regulations in force in each country, the maximum speed of D and S modes may differ from the values indicated above. Please consult local regulations for more information.

When you apply the brake or release the accelerator to coast, energy recovery is activated, converting part of your kinetic energy into stored electrical energy for reuse. Energy recovery can increase your range while also providing braking. It is recommended to set the level to "Low" for the first use. After connecting to the Navee app, you can adjust the intensity of energy recovery by scrolling down on the product's main interface. The default setting is "Low," but you can choose from three levels: "Low," "Medium," and "Strong."

Each model has a different range, indicated in its user manual. Typical range is generally measured with a full charge, under calm traffic conditions, at a temperature of 25°C, at a constant speed of 15 km/h on a flat surface, and with a 75 kg payload. Actual range may vary depending on load, ambient temperature, wind strength, road conditions, tire pressure, battery charge level, driving mode, and driving habits (sudden accelerations and braking, etc.).

The vehicle's unique QR code is required to connect to the NAVEE app. You can get it as follows: After logging in to the app, go to the home screen: [More Features] - [Settings] - [Vehicle QR Code], display the QR code and take a screenshot. The vehicle QR code can also be found on the sticker on the back of the dashboard, on the right side of the footboard, and on the back of the owner's manual.

After pressing the lock button in the NAVEE App, the vehicle enters motor lock mode and automatically shuts off after 24 hours. The motor remains locked even after restarting. If you try to push-start the vehicle while it is locked, an alarm will sound on the dashboard and the vehicle's buttons will be disabled. This function does not prevent theft; therefore, please monitor your vehicle carefully. Using the lock consumes the scooter's battery; therefore, please use it sparingly.
